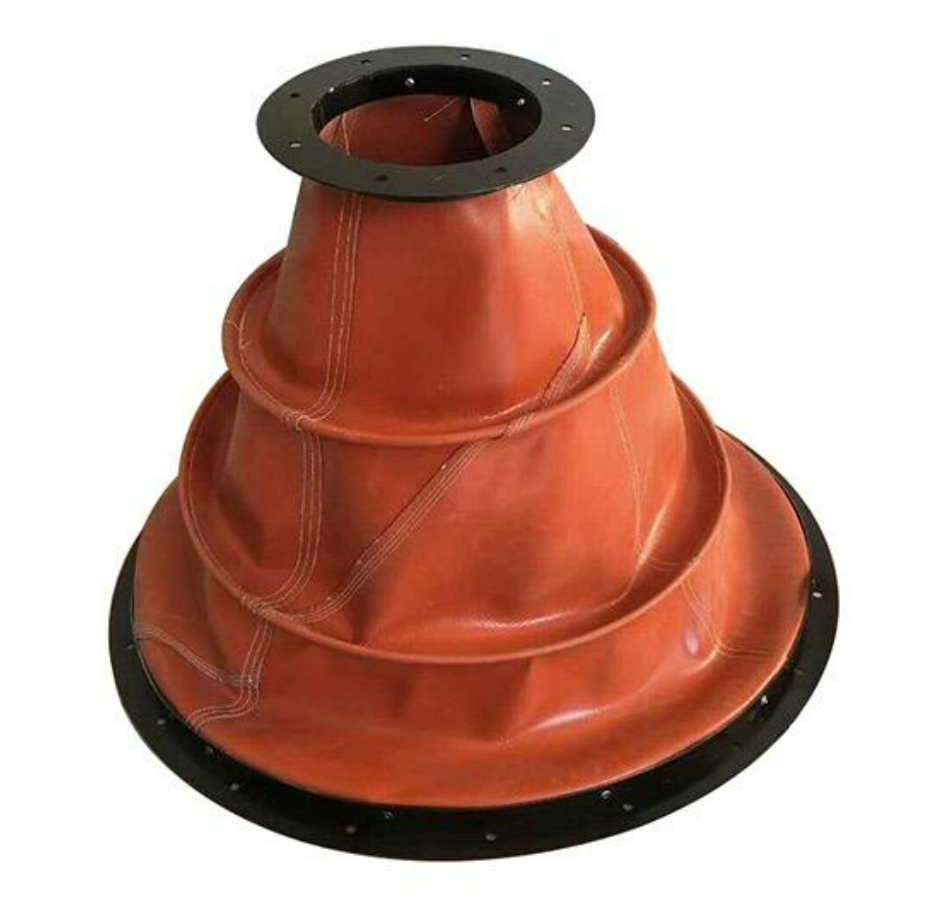

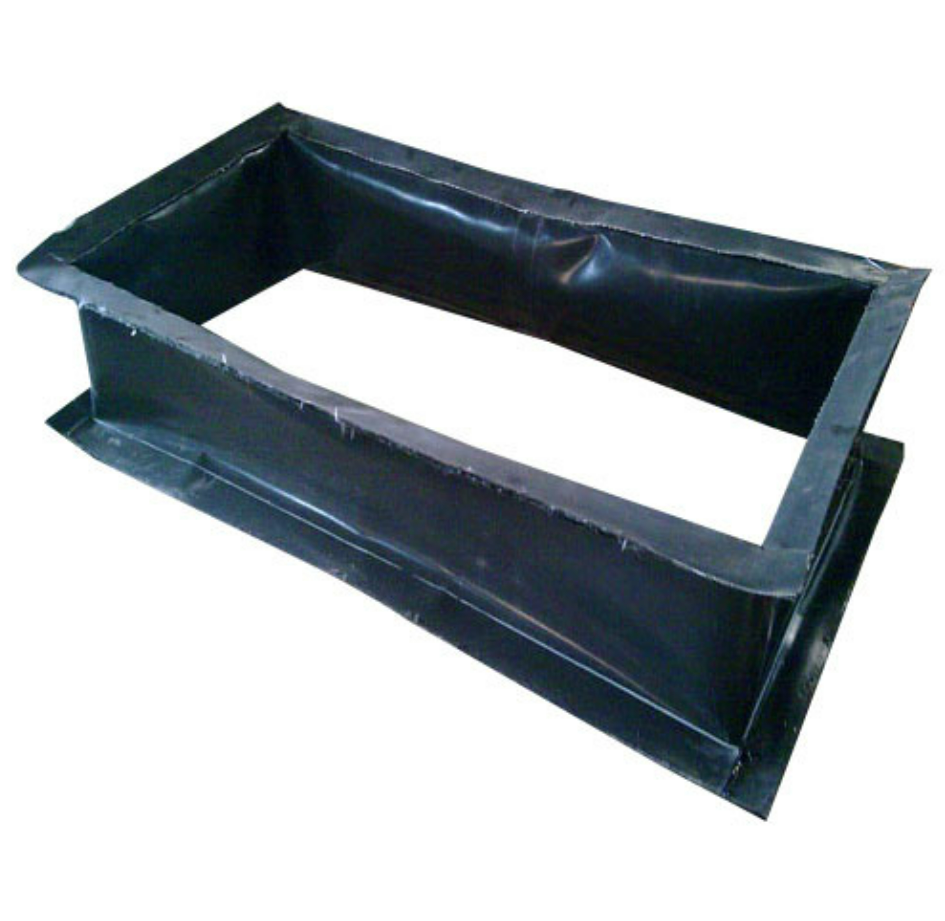

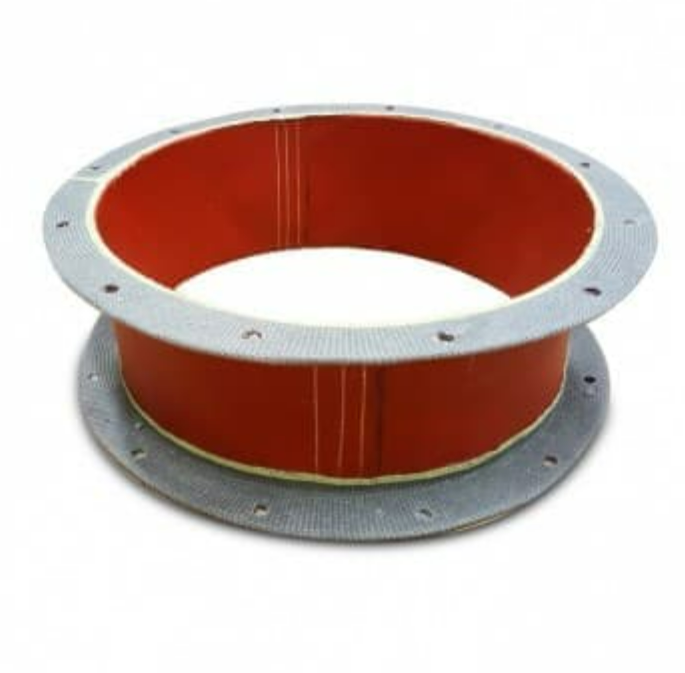

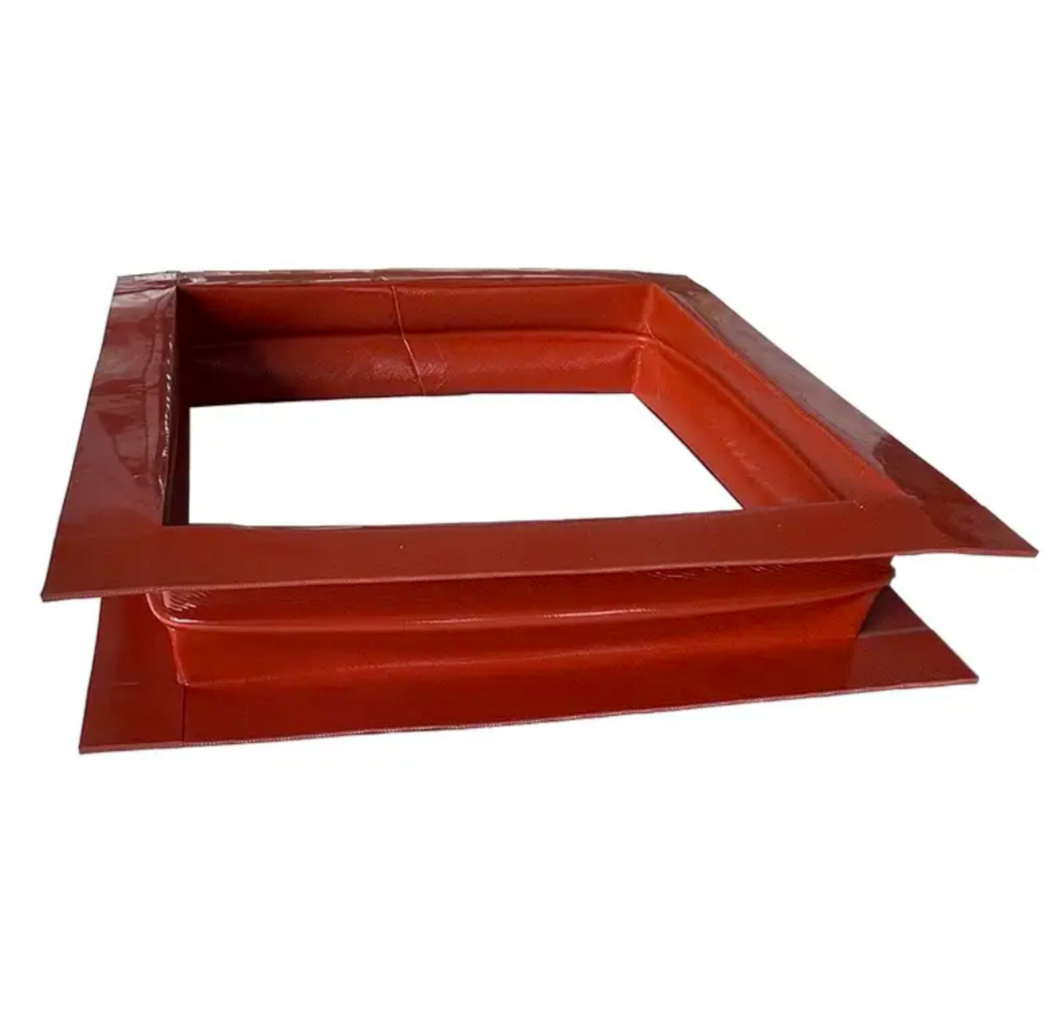

Fabric expansion joints must withstand loads like the system component or pipe itself and absorb additional stress, movements, oscillations or vibrations in axial and/or lateral direction – while ensuring operational safety. The main application areas are plants with gaseous media such as hot air, flue gas and acidic or alkaline gases. To meet the highest standards, we use the highest quality fabrics from our brand products such as Texsil, Firetex, Texalu, Texseal, along with the necessary coatings. |
You Produce Fabric Expansion Joints
We Supply You The Full Package Fabrics

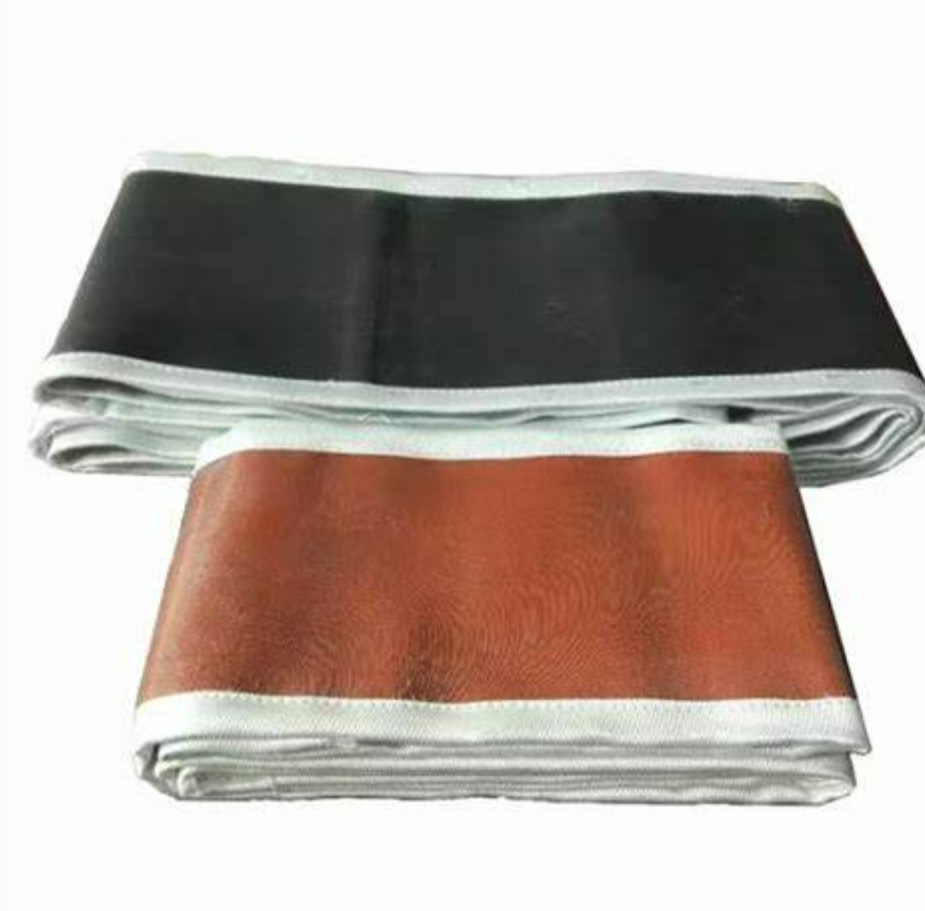

| Expansion Joints Fabrics Fabric expansion joints are made from layers of fabrics, coated fabrics, insulation mats, stainless steel meshes. The fabrics including fiberglass fabrics, ceramic fabrics, silica fabrics; the coated fabrics including silicone coated fiberglass fabrics, PTFE coated fiberglass fabrics, PTFE laminated fiberglass fabrics, silicone calendered fiberglass fabrics, EPDM calendered fiberglass fabrics, Fluororubber calendered fiberglass fabrics; the insulation mats including fiberglass needle mats, ceramic fiber needle mats, silica needle mats; also there are pure PTFE film layers, stainless steel wire meshes, etc. products can be used in non-metallic expansion joints to enhance the extra performance for different applications. |
  |
  |
  |
|
Code |
Product fabric |
Thickness |
Weight |
Temp(℃) |
|
WFF208 |
Texturized fiberglass fabric |
0.8 |
600 |
550 |
|
WFF210 |
Texturized fiberglass fabric |
1.0 |
800 |
550 |
|
WFF215 |
Texturized fiberglass fabric |
1.5 |
1000 |
550 |
|
WFF220 |
Texturized fiberglass fabric |
2.0 |
1300 |
550 |
|
WFF230 |
Texturized fiberglass fabric |
3.0 |
1800 |
550 |
|
WFF108 |
Fiberglass fabric |
0.8 |
840 |
550 |
|
WFF113 |
Fiberglass fabric |
1.3 |
1300 |
550 |
|
WFF117 |
Fiberglass fabric |
1.7 |
1700 |
550 |
|
WCF220 |
Ceramic fiber fabric |
2.0 |
1050 |
1260 |
|
WCF230 |
Ceramic fiber fabric |
3.0 |
1450 |
1260 |
|
WSF075TH |
Texsil silica fabric |
0.75 |
600 |
1000 |
|
WSF130TH |
Texsil silica fabric |
1.30 |
1100 |
1000 |
Coated Fabrics
|
Code |
Product fabric |
Thickness |
Weight |
Temp(℃) |
| WFF108R | Firetex Silicone coated fiberglass fabric | 0.9 | 1100 | 550/260 |
| WFF113R | Firetex Silicone coated fiberglass fabric | 1.3 | 1600 | 550/260 |
| WFF117R | Firetex Silicone coated fiberglass fabric | 1.7 | 2100 | 550/260 |
| TP100 | Texflon PTFE laminated fiberglass fabric | 1.0 | 1400 | 550/280 |
| TP140 | Texflon PTFE laminated fiberglass fabric | 1.4 | 1900 | 550/280 |
| TS125-255 | Texflon PTFE coated fiberglass fabric | 0.125 | 255 | 550/280 |
| TS23-490 | Texflon PTFE coated fiberglass fabric | 0.23 | 490 | 550/280 |
| WFL4000 | PTFE film | 0.15 | 315 | 280 |
| WFF1062S | Fiberglass fabric with SS wire reinforced | 0.6 | 640 | 550/800 |
| WFF108S | Fiberglass fabric with SS wire reinforced | 0.7 | 820 | 550/800 |
| WFF215S | Texturized Fiberglass fabric with SS wire | 1.5 | 1050 | 550/800 |
| WFF216IS | High temperature treated Texturized Fiberglass fabric with SS wire | 1.6 | 1250 | 750 |
Silicone/Fluororubber/EPDM Calendered Fiberglass Fabrics
|
Code |
Product fabric |
Thickness |
Weight |
Temp(℃) |
|
WFF1-10R1 |
Silicone calendered fiberglass fabric |
1.0 |
Red |
1 |
|
WFF1-10R |
Silicone calendered fiberglass fabric |
1.0 |
Red |
2 |
|
WFF1-12R1 |
Silicone calendered fiberglass fabric |
1.2 |
Red |
1 |
|
WFF1-12R |
Silicone calendered fiberglass fabric |
1.2 |
Red |
2 |
|
WFF1-13SR* |
Silicone calendered fiberglass fabric ss wire |
1.3 |
Red |
2 |
|
WFF1-15R1 |
Silicone calendered fiberglass fabric |
1.5 |
Red |
1 |
|
WFF1-15R |
Silicone calendered fiberglass fabric |
1.5 |
Red |
2 |
|
WFF2-20R1 |
Silicone calendered fiberglass fabric |
2.0 |
Red |
1 |
|
WFF2-20R |
Silicone calendered fiberglass fabric |
2.0 |
Red |
2 |
|
WFF2-25R1 |
Silicone calendered fiberglass fabric |
2.5 |
Red |
1 |
|
WFF2-25R |
Silicone calendered fiberglass fabric |
2.5 |
Red |
2 |
|
WFF2-30R1 |
Silicone calendered fiberglass fabric |
3.0 |
Red |
1 |
|
WFF2-30R |
Silicone calendered fiberglass fabric |
3.0 |
Red |
2 |
|
WFF2-50R |
Silicone calendered fiberglass fabric |
5.0 |
Red |
2 |
|
WFF1-15F |
Fluororubber calendered fiberglass fabric |
1.5 |
Black |
2 |
|
WFF1-15E |
EPDM calendered fiberglass fabric |
1.5 |
Black |
2 |
Insulation Mats
|
Code |
Product fabric |
Thickness |
Density |
Temp(℃) |
|
WFN |
E glass needle mat |
3 - 25 |
100 - 180 |
550 |
|
WRN |
ECR glass needle mat |
3 - 25 |
100 - 180 |
750 |
|
WSN |
Silica needle mat |
3 - 25 |
130 - 160 |
1000 |
|
WCBS |
Ceramic fiber blanket |
12.7 - 50 |
96 - 128 - 160 |
1260 |
|
BSB |
Bio soluble fiber blanket |
12.7 - 50 |
96 - 128 |
1260 |
|
Code |
Product fabric |
Count |
Weight |
Temp(℃) |
|
304/100/500 |
Stainless steel plain weave mesh |
100x100 |
500 |
800 |
