Firetex Coated Fiberglass Fabrics

Firetex Coated Fiberglass Fabrics

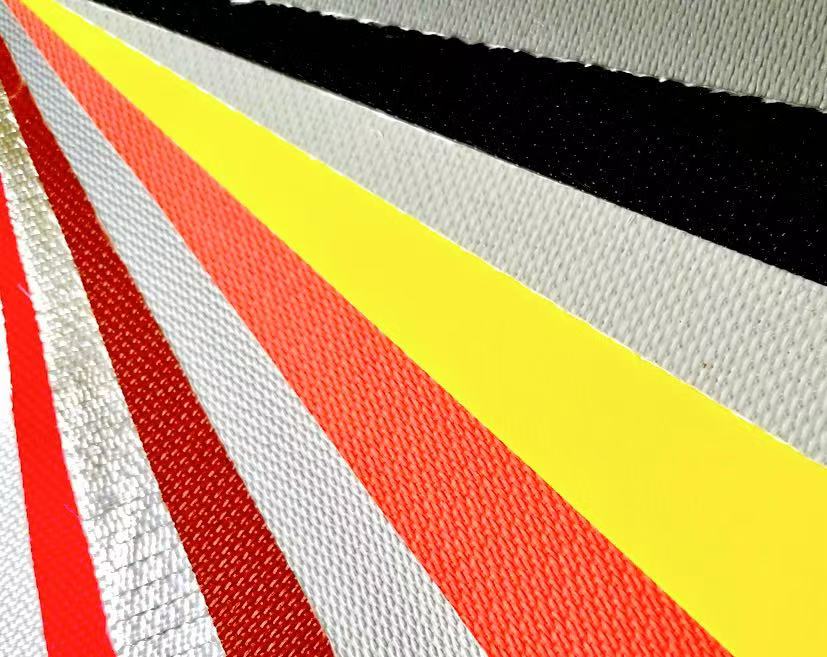

Firetex Coated Fiberglass Fabrics have great versatility along with improved handling properties. Loomstate and heat treated Texseal Fiberglass Fabrics are available in foil/film laminated, rubber polymer, inorganic materials coated forms. Intermittent thermal capability for the base fiberglass fabric is 550°C. If exposed to high temperatures of 350°C to 550°C for an extended period of time the fabric may become stiff and brittle. A hydrocarbon (H) finish can be applied to heat treated fabrics to minimize dermatitis during handling.

Maximum workable continuous temperature limits for the surface finish:

- Silicone  - 500°F (260°C)
- Polyurethane (PU) - 300°F (150°C)
- PTFE – 600°F (315°C)
- PVC - 150°F (80°C)
- Acrylic - 300°F (150°C)
- Neoprene - 300°F (150°C)
- H (Hydrocarbon) - 300°F (150°C)
- Aluminum Foil - 1200°F (650°C)
- Alum Mylar Film - 600°F (315°C)
- Graphite - 1382°F (750°C)
- Vermiculite - 1382°F (750°C)
- High Temperature solvent - 1382°F (750°C)
- Calcium Silicate - 1382°F (750°C)
- Intumescent - 1820°F (1000°C)

FIRETEX Fiberglass Fabrics are widely used as hot work protection, protection from weather elements, gas and liquid impermeability coverings, covering for removable insulations, safety color protection systems, fabricated curtains/blankets, automotive engine heat containment, and vertical spark protection in the Construction, Chemical Processing, Petroleum Refineries, Automotive Industry, and Maritime industries.

Silicone Coated Fiberglass Fabrics
Most popular silicone coated fiberglass fabrics for removable insulation blankets, welding blankets, fire curtains, car fire blankets, heat insulation.

Code

Thickness
(mm)

Glass Weight
(g/m2)

Silicone Weight
(g/m2)

Coat

Side

WFF102R1

0.20

205

50

1

WFF102R

0.20

205

100

2

WFF1041R1

0.40

430

60/80/100/150

1

WFF1041R

0.40

430

60/100/130/150/170/315

2

WFF1062R1

0.70

660

100/120/150/300

1

WFF1062R

0.70

660

200/240/300/600

2

WFF108R1

0.90

880

100/130/150/300

1

WFF108R

0.90

880

200/260/300/600

2

WFF113R

1.30

1300

300/500

2

WFF117R

1.70

1700

400/500/600

2

WFF1062R1S*

0.70

640

200/250

1

WFF1062RS*

0.70

640

240/300/400

2

WFF108R1S*

0.80

820

220

1

WFF108RS*

0.80

820

240/300/400

2

Available width: 1000mm, 1200mm, 1300mm, 1550mm

Available color: grey, red, black, white, yellow, green, blue, dark grey, etc.

Temperature: Fiberglass 550℃ Silicone 260℃

* V4A stainless steel wire reinforced in warp yarn and weft yarn

PTFE Coated Fiberglass Fabrics
Most popular grey color PTFE coated fiberglass fabrics for removable insulation blanket with chemical resistance etc.

Code

Thickness
(mm)

Weight
(g/m2)

Color

Coat

Side

WFF1041P1

0.40

560

Grey

1

WFF1041P1B

0.40

560

Black

1

WFF1041P

0.40

620

Grey

2

WFF1041P1B

0.40

620

Black

2

WFF108PB

1.00

1400

Black

2

Normally the black color item is for anti-static property

Temperature: Fiberglass 550℃ PTFE 280℃

PU Coated Fiberglass Fabrics
Most economical PU coated fiberglass fabrics for fire curtains, smoke curtains, welding blankets, removable insulation blankets, heat insulation.

Code

Thickness
(mm)

Glass Weight
(g/m2)

PU Weight
(g/m2)

Coat

Side

WFF1041U1

0.40

430

20/50

1

WFF1041U2

0.40

430

40/100

2

WFF1062U1

0.6

660

30

1

WFF1062U

0.6

660

60

2

WFF1062U1S*

0.60

640

30

1

WFF1062US*

0.60

640

60

2

WFF215U1**

1.30

1020

40

1

WFF215U**

1.30

1020

80

2

Available width: 1000mm, 1200mm, 1500mm

Available color: grey, iron red, dark grey, etc.

Temperature: Fiberglass 550℃ PU 120℃

* V4A stainless steel wire reinforced in warp yarn and weft yarn

** Texturized fiberglass fabric with PU coating

Acrylic Coated Fiberglass Fabrics
Various colors of acrylic weave lock coated fiberglass fabrics are easily cut with less fray fiber, reduce skin itching, easy stitching, for welding blankets, fire curtains, facing material on insulation blankets.

Code

Thickness
(mm)

Weight
(g/m2)

Color

Coat

Side

WFF102CW

0.20

210

White

2

WFF102CB

0.20

210

Black

2

WFF102CWP*

0.20

220

White

2

WFF1041CW

0.40

450

White

2

WFF106C

0.60

620

Blue/Green

2

WFF108HC

0.80

860

Tan

2

WFF113HC

1.30

1300

Tan

2

WFF208C**

0.80

630

Orange

2

WFF210C**

1.00

840

Orange

2

WFF208HC**

0.80

630

Tan

2

WFF215HC**

1.50

1000

Tan

2

Available width: 1000mm, 1500mm

Available color: black, blue, red, etc.

Temperature: Fiberglass 550℃ Acrylic 93℃

* Waterproof type

** Texturized fiberglass fabric with acrylic weave lock coating

Neoprene Coated Fiberglass Fabrics
Firetex Black color neoprene coated fiberglass fabrics for welding blankets, duct hoses with good oil resistance etc.

Code

Thickness
(mm)

Weight
(g/m2)

Color

Coat

Side

WFF104N

0.45

550

Salmon

2

WFF1041N

0.50

580

Black

2

WFF108N

1.00

1100

Black

2

WFF208N

0.80

800

Yellow

2

WFF210N

1.00

1000

Yellow

2

Available width: 1000mm, 1200mm, 1500mm

Temperature: Fiberglass 550℃ Neoprene 100℃

Vermiculite Coated Fiberglass Fabrics
Firetex Vermiculite coated texturized fiberglass fabric used as welding blankets, fire curtains, insulation layers, gloves, heat shields and sealers.

Code

Thickness
(mm)

Glass Weight
(g/m2)

Vermiculite
(g/m2)

Color

2025V

0.80

620

50

Brown

M24V

1.00

820

50

Brown

M30V

1.50

1020

50

Brown

M35V

1.60

1200

100

Brown

M35SV*

1.60

1250

100

Brown

Temperature: Fiberglass 550℃ Vermiculite 750℃

* V4A stainless steel wire reinforced in warp yarn and weft yarn

Graphite Coated Fiberglass Fabrics
Firetex Graphite coated fiberglass fabric used as welding blankets, heat shields.

Code

Thickness
(mm)

Glass Weight
(g/m2)

Graphite Weight
(g/m2)

Color

WFF108G

0.80

880

30

Black

WFF113G

1.30

1300

30

Black

WFF215G

1.50

1000

30

Black

WFF220G

2.00

1300

30

Black

WFF230G

3.00

1800

30

Black

Temperature: Fiberglass 550℃ Graphite 750℃

Calcium Silicate Coat Fiberglass Fabrics
Firetex Calcium silicate coated texturized fiberglass fabric used as welding blankets, fire curtains, insulation layers, heat shields and sealers.

Code

Thickness
(mm)

Glass Weight
(g/m2)

Calcium Silicate
(g/m2)

Color

M30CSW

1.50

1020

100

White

M30CSG

1.50

1020

100

Grey

M30CSB

1.50

1020

100

Blue

Temperature: Fiberglass 550℃ Calcium silicate 750℃

Heat Treated Fiberglass Fabrics
Firetex Heat treatment burn out the sizing in fiberglass fabric and make the fabric in tan color, no smoke when it’s used in high temperature places. Fray resistance in cut is available upon request.

Code

Thickness
(mm)

Glass Weight
(g/m2)

Weave
Patten

Yarn

Type

WFF1041H

0.40

400

Twill

Filament

WFF1062H

0.60

620

Satin

Filament

WFF108H

0.80

840

Satin

Filament

WFF113H

1.30

1300

Satin

Filament

WFF117H

1.70

1700

Satin

Filament

WFF208H

0.80

600

Plain

Texturized

WFF210H

1.00

800

Plain

Texturized

WFF215H

1.50

1000

Plain

Texturized

WFF220H

2.00

1300

Plain

Texturized

WFF230H

3.00

1800

Plain

Texturized

High Temperature Treated Fiberglass Fabrics
Firetex  HT Treated Fiberglas Fabrics are impregnated with a proprietary high temperature inorganic material treatment that helps the fabric remain pliable and strong when exposed to high temperature operating conditions. FIRETEX HT Treated Fiberglass Fabrics can handle temperatures up to 650°C. Potential applications include: expansion joints, turbine covers, removable insulation wraps, welding curtains, heat barriers, high temperature insulation, tank gaskets and automotive exhausts.

Code

Thickness
(mm)

Glass Weight
(g/m2)

Weave
Patten

Yarn

Type

WFF1041H

0.40

400

Twill

Filament

WFF1062H

0.60

620

Satin

Filament

WFF108H

0.80

840

Satin

Filament

WFF113H

1.30

1300

Satin

Filament

WFF117H

1.70

1700

Satin

Filament

WFF208H

0.80

600

Plain

Texturized

WFF210H

1.00

800

Plain

Texturized

WFF215H

1.50

1000

Plain

Texturized

WFF220H

2.00

1300

Plain

Texturized

WFF230H

3.00

1800

Plain

Texturized

V4A Wire Reinforced Fiberglass Fabrics
Firetex  V4A stainless steel wire reinforced fiberglass fabric gives additional strength,  abrasion resistance, cut resistance for coating Silicone, PU, vermiculite, high temperature treatment, etc.

Code

Thickness
(mm)

Weight
(g/m2)

Weave
Patten

Yarn

Type

WFF105W

0.55

550

Plain

Filament

WFF1062W

0.60

640

Satin

Filament

WFF108W

0.80

820

Satin

Filament

WFF215W

1.50

1000

Plain

Texturized

Available width: 1000mm, 1200mm, 1500mm

Temperature: Fiberglass 550℃ V4A stainless steel wire 1000℃

PVC Coated Fiberglass Fabrics
Firetex PVC with fire retardant additive compound coated on fiberglass fabric used as fire proof tarpaulin for traffics, constructions, warehouses, etc..

Code

Thickness
(mm)

Glass Weight
(g/m2)

PVC Weight
(g/m2)

Color

WFF102PV

0.30

220

100

Orange

WFF103PV

0.35

300

100

Orange

WFF1041PV

0.50

430

150

Black

Temperature: Fiberglass 550℃ PVC -20℃/ 60℃

Silicone Calendered Fiberglass Fabrics
Silicone calendered fiberglass fabrics is a silicone compound sheet calendered on one side of fiberglass fabric or two sides of fiberglass fabric, stainless steel wire reinforcement is available to enhance the fabric performance of higher strength and long using life for fabric expansion joints, bellows, cushions.

Code

Thickness
(mm)

Width
(mm)

Color

Calendered

Side

WFF1-10R1

1.0

1000/1200

Red

1

WFF1-10R

1.0

1000/1200

Red

2

WFF1-12R1

1.2

1000/1200

Red

1

WFF1-12R

1.2

1000/1200

Red

2

WFF1-13SR*

1.3

1000/1200

Red

2

WFF1-15R1

1.5

1000/1200

Red

1

WFF1-15R

1.5

1000/1200

Red

2

WFF2-20R1

2.0

1000/1200

Red

1

WFF2-20R

2.0

1000/1200

Red

2

WFF2-25R1

2.5

1000/1200

Red

1

WFF2-25R

2.5

1000/1200

Red

2

WFF2-30R1

3.0

1000/1200

Red

1

WFF2-30R

3.0

1000/1200

Red

2

WFF2-50R

5.0

1000/1200

Red

2

Available color: grey, red, black, white, yellow, green, blue, dark grey, etc.

Temperature: Fiberglass 550℃ Silicone 260℃

* Stainless steel wire reinforced in warp yarn and weft yarn
