Removable Insulation Blanket materials

A removable insulation blanket has three main components:

- Hot side: the inner layer, which works to keep the insulation mat in place, and can also act as a barrier, protecting the insulation mat from fluid seepage.

- Insulation media: the middle layer mat which provides the actual heat containment. Mat thickness varies from 1/8” to 4”, depending on the amount of heat reduction the application requires.

- Cold side: the outer layer protective fabrics, designed to shield and protect the insulation from the working surroundings.

Aside from these three components, there is fastening system used to secure the insulation blanket in place.

All of these components can vary according the application in question and the end user requirements.

Fabrics:

• PTFE(Teflon) coated fiberglass fabric 560gsm
• PTFE(Teflon) coated fiberglass fabric 620gsm
• Silicone coated fiberglass fabric 510gsm
• Silicone coated fiberglass fabric 580gsm
• Silicone coated fiberglass fabric 595gsm
• Silicone coated fiberglass fabric 1080gsm
• Aluminized fiberglass fabric 670gsm
• 2025 Fiberglass fabric Heat treated 600gsm
• 2025 Fiberglass fabric Vermiculite treated 620gsm
• Silica fabric 600gsm
• Silica fabric 1100gsm

Insulation:

• Fiberglass mat
• Aerogel mat
• Silica mat
• Ceramic fiber blanket

Mesh & Foil:

• Stainless steel wire knitted mesh
• Stainless steel wire knitted tape
• Stainless steel foil
• Embossed stainless steel foil

Sewing thread:

• PTFE coated fiberglass thread
• PTFE coated fiberglass  thread with SS wire
• Kevlar with SS wire thread
• PTFE coated Silica thread
• PTFE coated metal sewing thread

Fasteners:

• 304 Stainless Steel D-Rings
• 304 Stainless Steel round washers
• 304 Stainless Steel lacing anchors
• 304 Stainless Steel lacing top
• 304 Stainless Steel buckles
• 304 Stainless Steel springs

Drawcords:

• Fiberglass rope
• Aramid rope
• Aramid tape
• 304 SSteel lacing wire
• 304 knitted mesh tape
• Silicone coated fiberglass tape

Velcro:

• Polyester hook & loop
• Flame retardant Polyester hook & loop

Hot Side Materials ( Inside layer)

The inner layer, which works to keep the insulation mat in place, and can also act as a barrier, protecting the insulation mat from fluid seepage.

Heated Treated Fiberglass Fabrics
100% fiberglass cloth with heat heat treatment to clean out the sizings on yarns which makes the fabric pure and easy cutting with less fray, to reduce itching with hydrocarbon coating is available upon request. the dependable standard for pipe and valve protection up to 550 ˚C.

Product Code

Weight/yd.²

Thickness

Width

WFF208H

18 oz.

0.030”

40”,60”,72”

WFF210H

24 oz.

0.040”

40”,60”,72”

Vermiculite Coated Fiberglass Fabrics
Tough and durable vermiculite-coated fiberglass cloth up to 750 ˚C.

Product Code

Weight

Thickness

Width

WFF208V

630g/m2

0.8mm

1m & 1.5m

WFF210V

830g/m2

1.0mm

1m & 1.5m

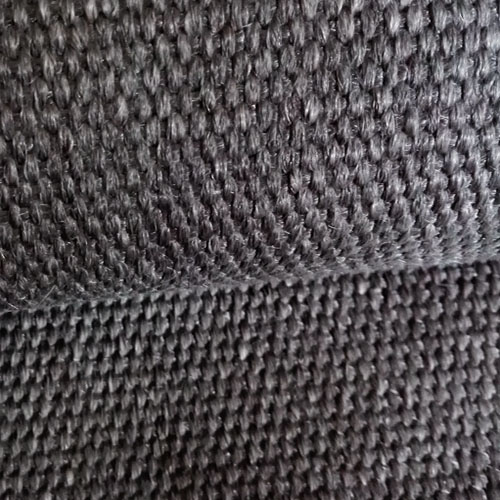

High Temperature Treated Fiberglass Fabrics
Tough and durable high temperature treated fiberglass fabrics with SS wire inserted up to 750 ˚C.

Product Code

Weight

Thickness

Width

WFF213IS

1050/m2

1.3mm

1m & 1.5m

WFF215IS

1190g/m2

1.5mm

1m & 1.5m

Texsil Silica Fabrics
Min.96% pure amorphous Texsil silica cloth is the ultimate defense against the hottest temperature up to 1000 ˚C.

Product Code

Weight

Thickness

Width

WFF075TH

600g/m2

0.75mm

0.914m &1m

WFF130TH

1100g/m2

1.30mm

0.914mm & 1m

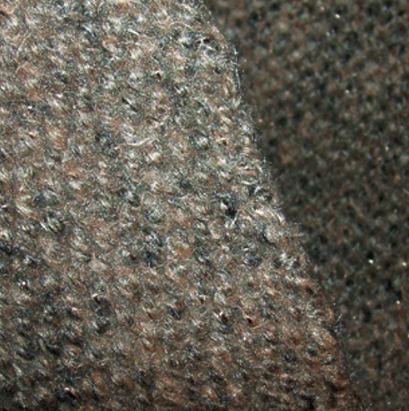

Heat Treated Ceramic Fiber Fabrics
Tough and durable heat treated ceramic fiber fabrics up to 1100 ˚C.

Product Code

Weight

Thickness

Width

WCF220H

880g/m2

2.0mm

1m & 1.25m & 1.5m

WCF230H

1300g/m2

3.0mm

1m & 1.25m & 1.5m

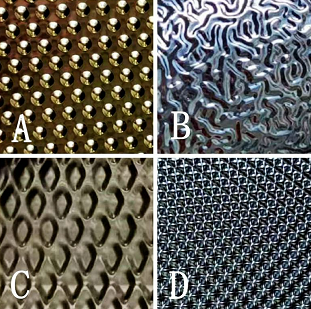

304 stainless steel
knitted wire mesh/ foil / embossed foil
for additional hot side fabric protection to enhance abrasion resistance

Product Code

Material

Weight

Thickness

304/28/1000/50

304 knitted wire mesh

600g/m2

0.28mm

304/100/1000/50

304 stainless steel foil

800g/m2

0.10mm

304/100/600/50E

304 Embossed foil

800g/m2

0.10mm

Width: 0.4572m, 0.610m, 0.760m, 1m

Cold Side Materials (Outside layer)

The outer layer of insulation jacket, designed to shield and protect the insulation from the working surroundings, including silicone coated fiberglass fabric, PTFE coated fiberglass fabric, aluminized fiberglass fabric, various colors are available.

Silicone coated fiberglass fabric
Provides tough resistance to water, oil and heat

Product Code

Weight

Thickness

Width

WFF1041R1

510g/m2

0.40mm

1m & 1.5m

WFF1041R

560g/m2

0.40mm

1m & 1.5m

WFF1041R

580g/m2

0.40mm

1m & 1.5m

WFF1041R

595g/m2

0.40mm

1m & 1.5m

WFF108R

1080g/m2

0.90mm

1m & 1.5m

PTFE coated fiberglass fabric
Provides tough resistance to chemical, water, oil, and heat

Product Code

Weight

Thickness

Width

WFF1041P1

560g/m2

0.40mm

1m & 1.5m

WFF1041P

620g/m2

0.40mm

1m & 1.5m

WFF108P

1400g/m2

1.1mm

1.5m

Notes:

Grey color is standard color.

Black color for antistatic is available.

Aluminized fiberglass fabric
Provides spray shield, heat reflection application

Product Code

Weight

Thickness

Width

WFF1041AD540

540

0.40mm

1m & 1.2m & 1.5m

WFF1041AM

480

0.40mm

1m & 1.2m & 1.5m

WFF1041MPF

460

0.40mm

1m & 1.2m & 1.5m

WFF208HAM

680g/m2

0.80mm

1m & 1.2m & 1.5m

Insulation media materials (Middle layer)

The middle layer mat which provides the actual heat containment. Mat thickness varies from 1/8” to 4”, depending on the amount of heat reduction the application requires.

Fiberglass needle mat
Typical insulation used in most standard insulation blanket 650 ˚C

Product Code

Density

Thickness

Width

WFN3

130kg/m3

3mm

1m – 3m

WFN6

130kg/m3

6mm

1m – 3m

WFN12

150kg/m3

12mm

1m – 3m

WFN20

160kg/m3

20mm

1m – 3m

WFN25

180kg/m3

25mm

1m – 3m

ECR Fiberglass needle mat
Enhanced ECR needle mat used in insulation blanket 750 ˚C, ECR glass have higher SiO2 content than standard E glass.

Product Code

Density

Thickness

Width

WFN3

130kg/m3

3mm

1m – 3m

WFN6

130kg/m3

6mm

1m – 3m

WFN12

150kg/m3

12mm

1m – 3m

WFN20

160kg/m3

20mm

1m – 3m

WFN25

180kg/m3

25mm

1m – 3m

Silica needle mat
Enhanced thermal properties, ideal for high temperature 1000 ˚C

Product Code

Density

Thickness

Width

WSN3

130kg/m3

3mm

1m – 3m

WSN6

130kg/m3

6mm

1m – 3m

WSN12

130kg/m3

12mm

1m – 3m

WSN20

150kg/m3

20mm

1m – 3m

WSN25

160kg/m3

25mm

1m – 3m

TEXGEL GF Aerogel Insulation Blanket
Superior insulation material 650 ˚C with low thermal conductivity

Product Code

Density

Thickness

Width

TEXGEL GF 3

180kg/m3

3mm

1500mm

TEXGEL GF 6

180kg/m3

6mm

1500mm

TEXGEL GF 10

180kg/m3

3mm

1500mm

Ceramic fiber blanket
Enhanced thermal properties, ideal for high temperature 1100 ˚C

Product Code

Density/m3

Thickness

Width

WCBS12

96/128

12mm

0.61m&1.22m

WCBS25

96/128

25mm

0.61m&1.22m

WCBS38

96/128

38mm

0.61m&1.22m

WCBS50

96/128

50mm

0.61m&1.22m

Accessories

Various accessories are need to fabricate the removable insulation blanket for easy installation and removal, a full range of heat-resistant sewing thread, drawcord, stainless steel hardware and velcro is available.

Sewing thread
PTFE coated fiberglass, aramid, silica and metal threads for secure fabrication

Product Code

Material

Yield

Size

W12

PTFE coated fiberglass

4800 m/kg

1.0 kg.cone

W18

PTFE coated fiberglass

3800 m/kg

1.0 kg.cone

W24

PTFE coated fiberglass

3000 m/kg

1.0 kg.cone

W40S3/6S

PTFE coated fiberglass + 6 wires

3800 m/kg

0.5 kg.cone

W200D3/8S

200D3 Kevlar + 8ply SS wires

6000 m/kg

0.5 kg.cone

W1000D10S

1000D Kevlar + 10ply SS wires

4000 m/kg

0.5 kg.cone

WSY220P7

Silica machine sewing thread

4500 m/kg

1.0 kg.cone

W3041003

PTFE coated SS thread

3000 m/kg

1.0 kg.cone

Lacing anchors, washers and rings
Stainless steel accessories for secure and durable removable cover fabrication

Product Code

Material

Size

Dimension

SS12LA

Lacing anchor

12 gauge

1.5”, 2.5”, 4.5”

SS12LT

Lacing top

12 gauge

1”

SS12W

Washer

12 gauge

1”

SS14LA

Lacing anchor

14 gauge

1.5”, 2.5”, 4.5”

SS14LT

Lacing top

14 gauge

1”

SS14W

Washer

14 gauge

1”

SSDR

D ring

10 gauge

SSB

Buckle

3/8” – 3/4”

SSS

Spring

3/8”,1/2”

ID2.5”,3.5”,4.5”

Velcro hook and loop
Velcro for secure and durable removable cover

Product Code

Material

Width/mm

Length

VHL

Polyester

25/50/75/100

50m

VHLFR

Flame retardant Polyester

25/50/75/100

50m

Drawcord
Drawcord for secure and durable removable cover

Product Code

Material

Length

Width

GR

Fiberglass rope

100m

5mm-10mm

AR

Aramid rope

100m

5mm-10mm

AT

Aramid tape

30m

3x25mm

SSW

304 wire

250m

1mm

SST

304 knitted wire tape

100m

25mm/50mm

3732/1700T

Silicone coated fiberglass tape

30m

25mm

3784/3200T

Silicone coated fiberglass tape

30m

25mm
