Welding Blankets and Fabrics

Light Duty Welding Curtains
These light-duty welding curtains are made of uncoated fiberglass, or slightly coating thin fiberglass fabrics, which is a lightweight and flexible material working as a vertical hanging in general welding, light spark protection for welding, cutting, grinding.

Code

Product

Thickness
(mm)

Weight
(g/m2)

Temp(℃)

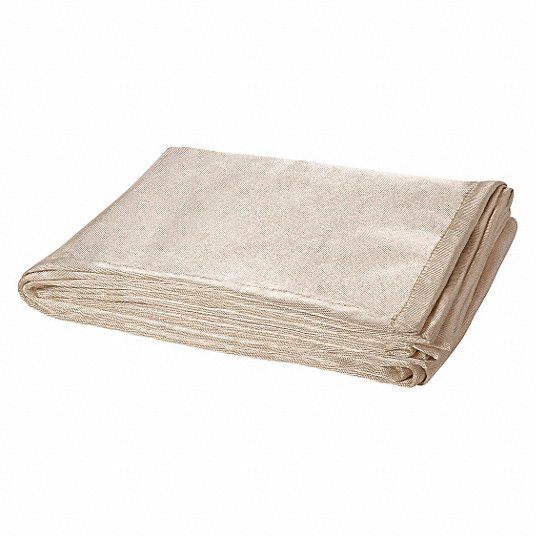

WFF208

Texurized Fiberglass Fabric

0.8

600

550

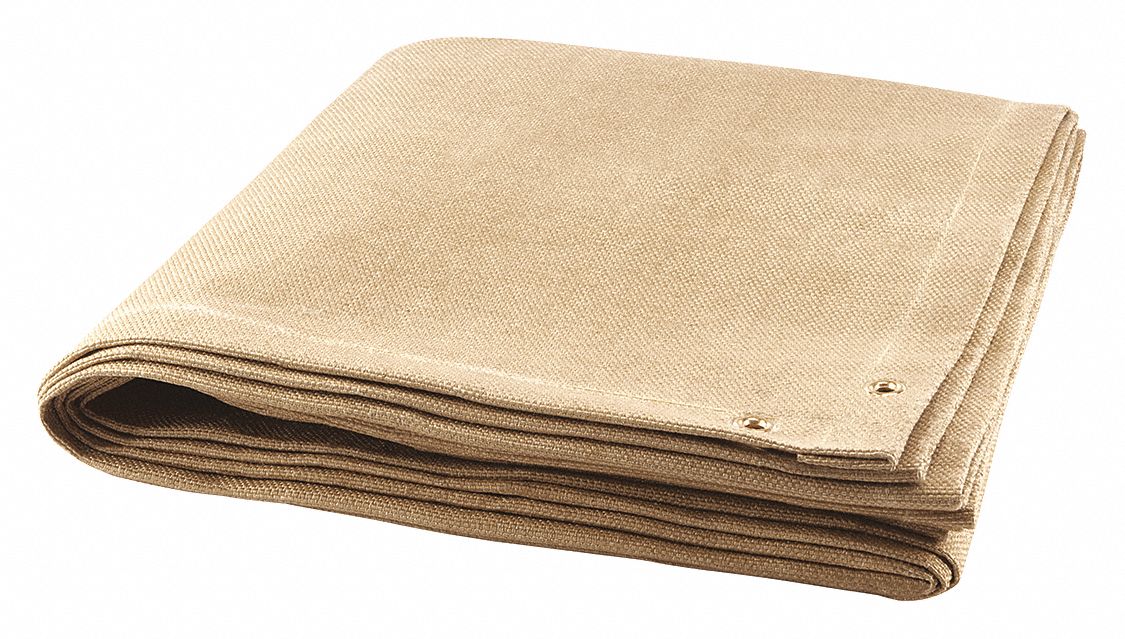

WFF208H

Heat treated Texturized Fiberglass Fabric

0.8

600

550

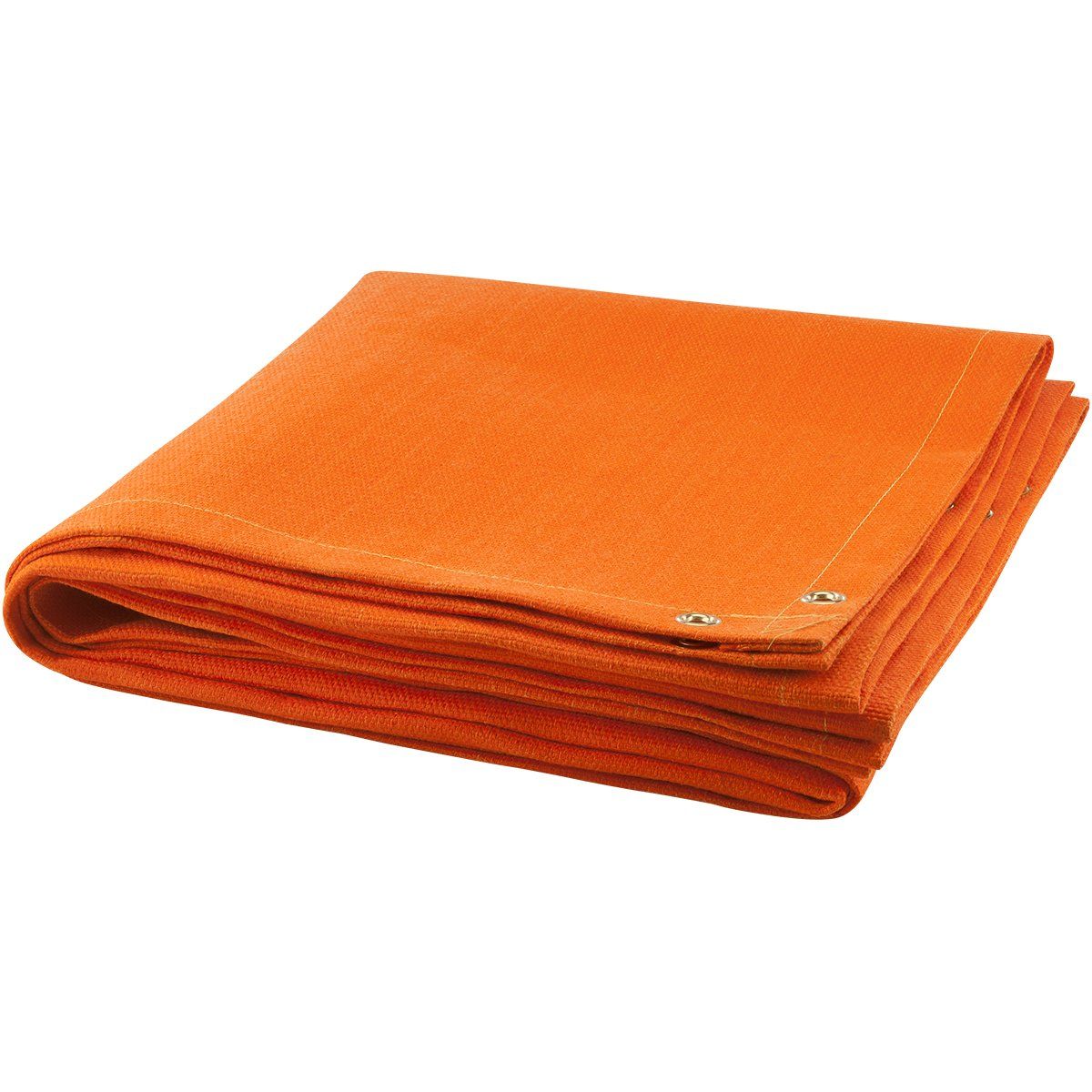

WFF208O

Orange Color Texturized Fiberglass Fabric

0.8

610

550

WFF210O

Orange Color Texturized Fiberglass Fabric

1.0

810

550

WFF104C

Acrylic Coated Fiberglass Fabric

0.4

540

550

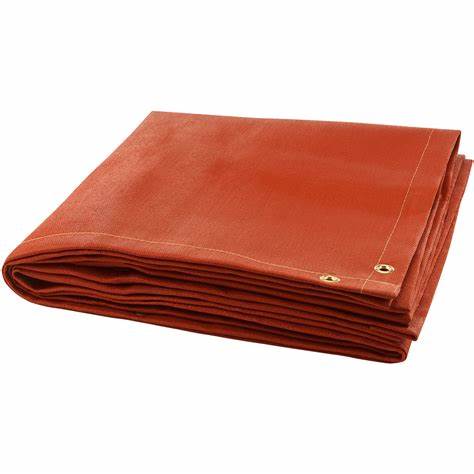

WFF1041R

Silicone coated fiberglass Fabric

0.4

560

550

WFF208A

Aluminium Foil Laminated Fiberglass Fabric

0.8

650

550

Medium Duty Welding Blankets

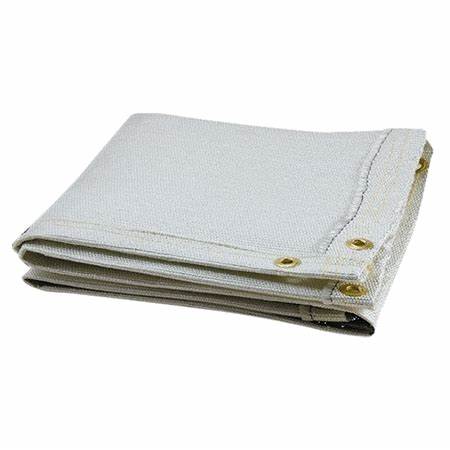

These medium-duty welding blankets are made from uncoated fiberglass, which is a flexible material that protects nearby surfaces from sparks, spatter, and light slag. Medium-duty uncoated fiberglass is heavier than light-duty uncoated fiberglass and is suitable for stress relief applications. Also vermiculite coating, acrylic coating, neoprene coating, silicone rubber coating is available for medium duty welding blankets in protection for sparks, spatter, minimal slag.

Code

Product

Thickness
(mm)

Weight
(g/m2)

Temp(℃)

WFF210

Texturized Fiberglass Fabric

1

800

550

WFF215

Texturized Fiberglass Fabric

1.5

1000

550

WFF208V

Vermiculite Coated Texturized Fiberglass Fabric

0.8

650

750

WFF210V

Vermiculite Coated Texturized Fiberglass Fabric

1

850

750

WFF215V

Vermiculite Coated Texturized Fiberglass Fabric

1.5

1050

750

WFF108R

Silicone Coated Fiberglass Fabric Grey

0.9

1080

550

WSF075TM

Texsil ECO silica fabric

0.7

600

800

WSF075TMR

Silicone coated Texsil ECO silica fabric

0.7

800

800

WFF113G

Graphite Coated Fiberglass Fabric

1.3

1300

750

WFF210C

Acrylic Coated Texturized Fiberglass Fabric Yellow

1

1000

550

WFF108N

Noeprene Coated Fiberglasss Fabric Black

0.9

1080

550

WCN215

Carbonized Fiber Fabric

1.5

550

400

Heavy Duty Welding Pads
Heavy-duty vermicuilte coated fiberglass welding blankets protect surfaces from heat, sparks, spatter, and light slag. The silicone coating resists abrasion, water, oil, and some solvents and will not produce toxic fumes when exposed to flame or high temperatures. Heavy-duty Texsil Eco silica fabrics and Texsil Silica fabrics are ideal materials for heavy sparks, spatter, slag and light molten metal protection in horizental sheets.

Code

Product

Thickness
(mm)

Weight
(g/m2)

Temp(℃)

WFF220V

Vermiculite Coated Texturized Fiberglass Fabric

2

1350

750

WFF230

Texturized Fiberglass Fabric

3

1800

550

WFF230G

Graphite Coated Texturized Fiberglass Fabric

3

1800

750

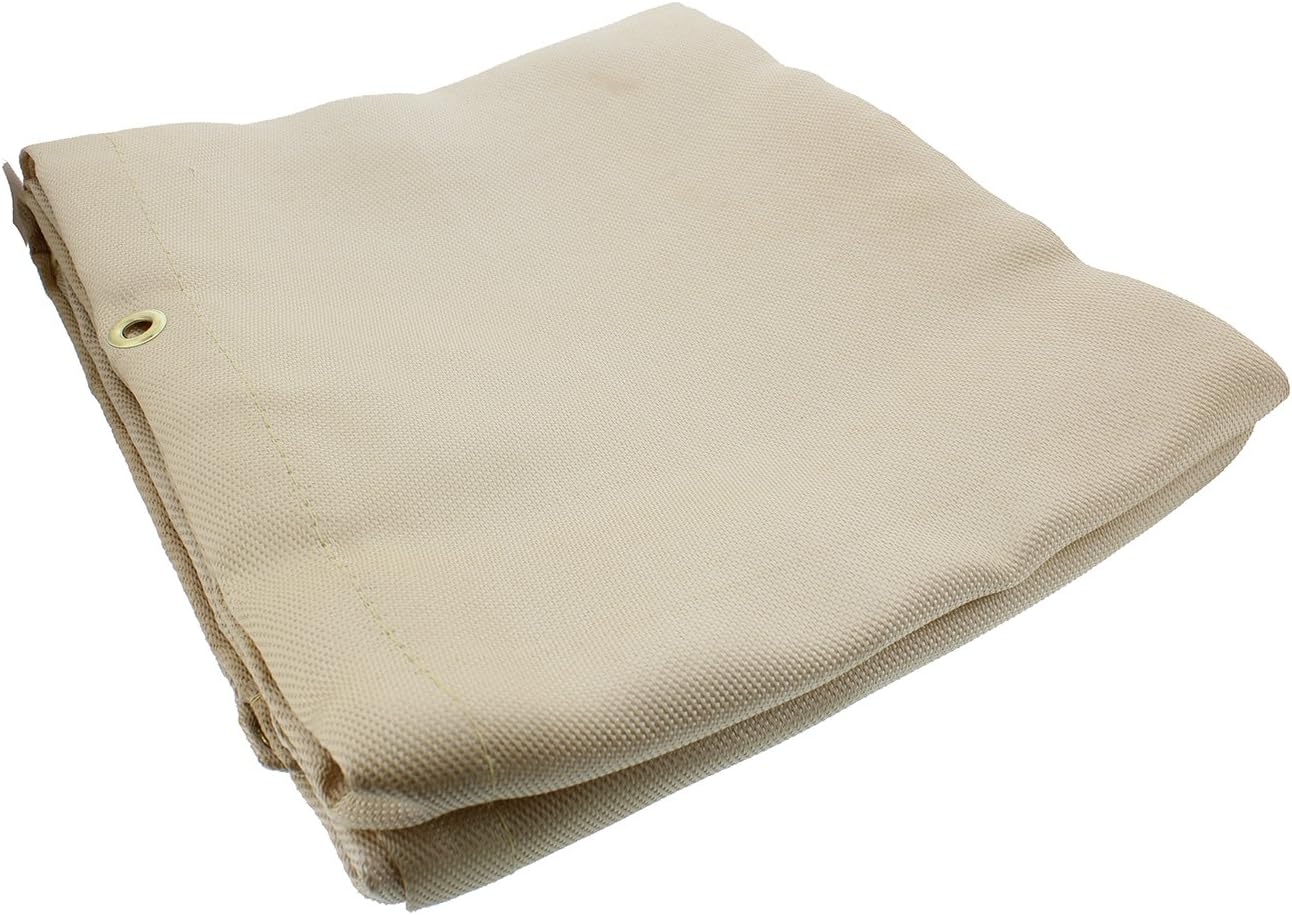

WSF075TH

Texsil Silica Fabric

0.75

600

1000

WSF075THV

Texsil Silica Fabric with Vermiculite Coating

0.75

630

1100

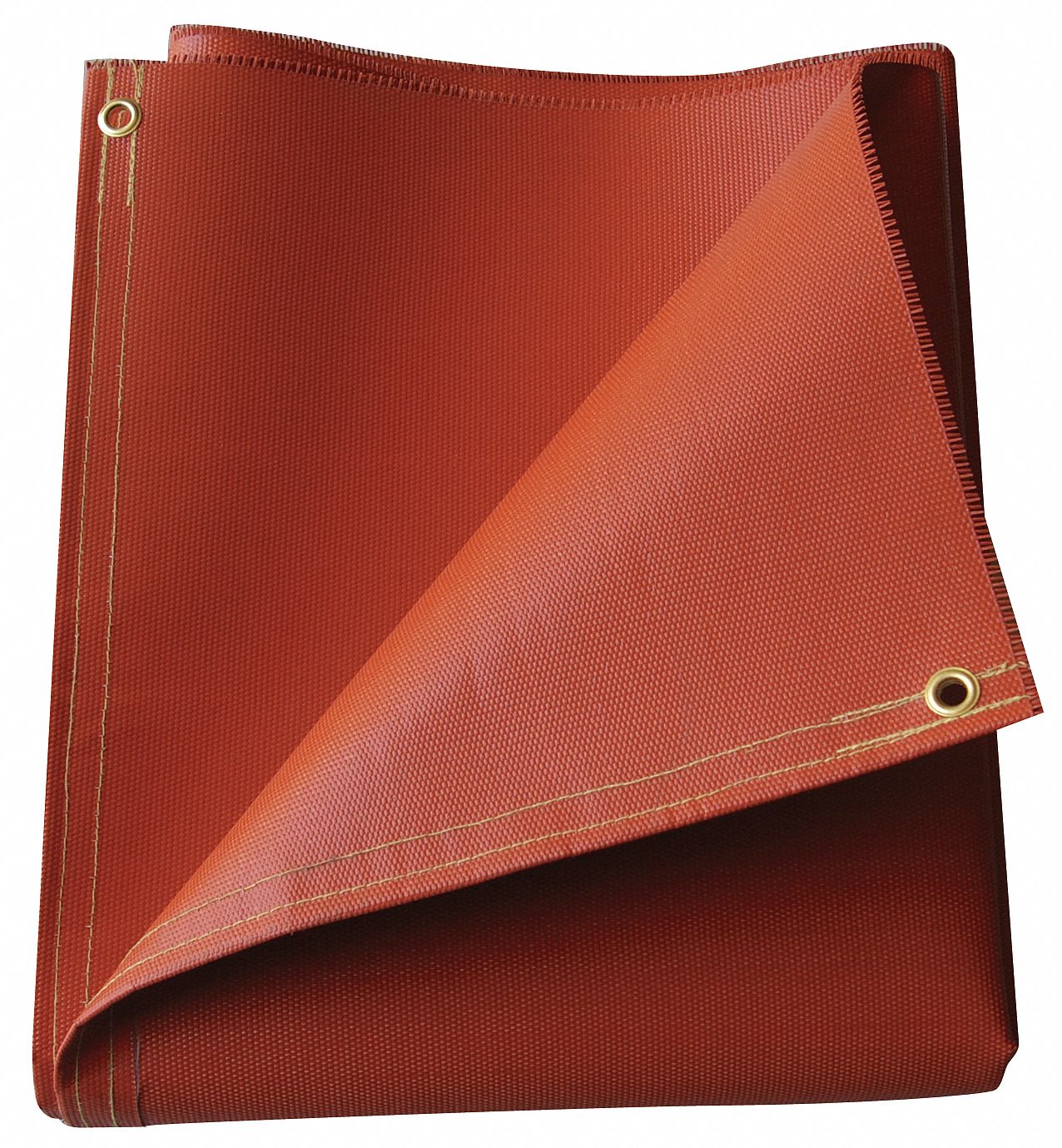

WSF060WHSR

Texsil Ultra Silica Fabric with Silicone Coating

0.8

800

1000

WSF130TM

Texsil Eco Silica Fabric

1.3

1100

800

WSF130TMR1

Silicone coated Texsil Eco Silica Fabric on one side

1.4

1400

800

CN05

Carbonized fiber felt

5

550

400-1000

Extremely Heavy Duty Welding Pads
These extremely heavy-duty welding blankets are made of vermiculite coated silica cloth, which is a thin, lightweight material that protects against heavy sparks, spatter, slag, and molten metal. Texsil silica cloth remains flexible at high temperatures, making it a good choice near intense heat for heavy spatter, slag and molten metal  in horizental sheets.

Code

Product

Thickness
(mm)

Weight
(g/m2)

Temp(℃)

WSF130TH

Texsil Silica Fabric

1.3

1100

1000

WSF130THV

Texsil Silica Fabric with Vermiculite Coating

1.3

1150

1100

WSF100WHSR1

Texsil Ultra Silica Fabric with Silicone Coating

1.2

1400

1000

WCF220V

Vermiculite Coated Ceramic Fiber Fabric

2

1100

1200

WCF230V

Vermiculite Coated Ceramic Fiber Fabric

3

1500

1200

Stress Relief Usage: Only uncoated material recommended
Heat Reflection Usage: Only aluminized material recommended
Water and Oil Resistance: Silicone coated fiberglass fabric
Aluminized fiberglass fabric: Above are regular fabrics, contact us for more fabrics.
