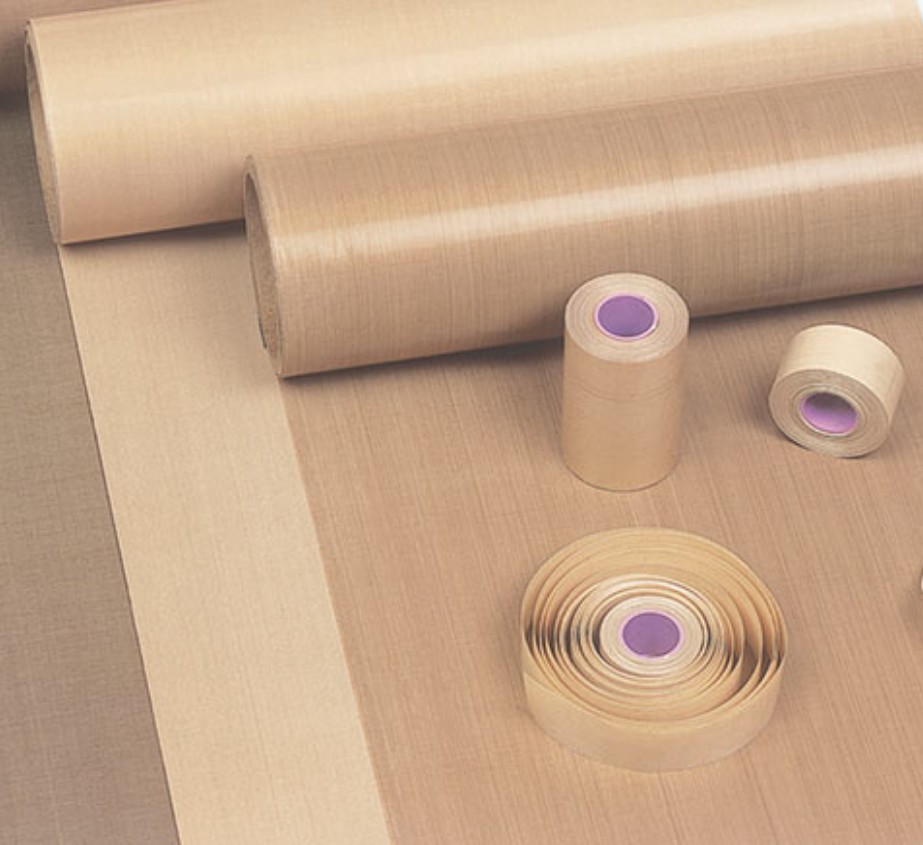

Texflon Fabrics
Texflon PTFE coated fiberglass fabrics are made of fiberglass fabrics with both sides PTFE dispersion impregnated. It's Operational and dimensionally stable from -100°F (-73° C) to +550°F (+288°C), with excellent release characteristics, low surface friction, abrasion and Chemical resistant, also FDA compliant for food processing. There are different types Texflon fabrics specified in different applications, such as Texflon plus, Texflon, Texflon minus, Texflon black anti-static, Texflon Porous, Texflon crease & tear resistance, Texflon totilla, Texflon carpet belting, Texflon meat grilling, Texflon welding, Texflon abrasive.

Texflon Plus PTFE Coated Fiberglass Fabrics Texflon Plus fabric is higher level of PTFE coated with high quality fiberglass fabric. Its surface showing a very smooth, low friction characteristics.It also has excellent abrasion,high temperature,chemical resistance,the best release and good tensile strength.Texflon Plus PTFE Coated Fiberglass Fabrics are mainly used in some special applications requiring an extremely smooth surface. Application: laminate release sheets, Fuse pressing blets, Release sheets for food processing, Special heat sealing for packaging, Electrical insulation.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Tensile Stength (N/5cm)
TP08-155	1000-1500	0.080	155	600
TP13-270	1000-1500	0.130	270	1100
TP15-316	1000-1500	0.150	316	1100
TP24-530	1000-1500	0.250	530	2100
TP35-720	1000-1500	0.350	720	2700

Texflon Standard PTFE Coated Fiberglass Fabrics Texflon Standard PTFE Coated Fiberglass fabric possesses an optimal PTFE content. It's the most popular used ptfe coated fiberglass cloth, the Texflon fabric provides a superior smooth, non stick surface and a high temperature remarkable release characteristics. The Texflon PTFE Coated Fiberglass Cloth serves the largest range of industrial and general purpose applications. Application: Release sheets in heat sealing & laminating, Food baking sheets, Gaskets, seals and bearings for chemicals, oils and gases, Covers for hot plates, platens, chutes, hoppers, and rolls, Thermal insulation for high-temperature and chemical-resistant applications.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Tensile Strength (N/5cm)
TS075-135	1000-1250	0.075	135	600
TS125-255	1000-2000	0.125	255	1100
TS14-300	1000-1250	0.140	300	1100
TS23-490	1000-2800	0.230	490	2100
TS35-650	1000-2600	0.330	650	2700

Texflon Minus PTFE Coated Fiberglass Fabrics Texflon Minus fabric is a low content PTFE Coated Fiberglass fabric. It is a cheaper quality developed to achieve cost effective performance in the manufacure of heat-sealing bags, release sheets, baking liners, it's widely used in some large volume industrial applications which is more sensitive to the price. Application: Separator sheets for processing uncured rubber, Food baking sheets, Gaskets, seals and bearings for chemicals, oils and gases, Covers for hot plates, platens, chutes, hoppers, and rolls, Processing paper, plastics, metallic foils and cloth.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Tensile Strength (N/5cm)
TM07-110	1000-1250	0.07	110	600
TM10-220	1000-2000	0.10	220	1100
TM11-235	1000-2000	0.11	235	1100
TM21-420	1000-2800	0.21	420	2100
TM22-455	1000-2600	0.22	455	2700

Texflon Black Anti-static PTFE Coated Fiberglass Fabrics Texflon Black Antistatic fabric contains a proprietary static dissipation additive to eliminates static electricity during operation. It provides an anti-static properties to the material which eliminates or reduces static problems in belt and slip sheet applications. Application: Release sheets and as conveyor belts for fusing machines to bond woven & non-woven fabrics.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Tensile Stength(N/5cm)
TAS08-155	1000-1250	0.08	155	600
TAS11-235	1000-1500	0.11	235	1100
TAS12-255	1000-1500	0.12	255	1100
TAS14-296	1000-1500	0.14	296	1100
TAS22-470	1000-1500	0.22	470	2100
TAS23-490	1000-1500	0.23	490	2100
TAS24-520	1000-1500	0.24	520	2100
TAS35-680	1000-3500	0.35	680	3400
TAS36-720	1000-3500	0.36	720	3400

Texflon Porous PTFE Coated Fiberglass Fabrics Texflon Porous PTFE coated fiberglass fabric has lower PTFE content coating and allows airflow get through the fabric.Porous/bleeder fabrics allows outgassing of volatile products, it can be used in air circulation for drying and filter, curing processes for textile and screen printing industries.Texflon Porous PTFE coated fiberglass fabric has a wide rang of porosity available for customer’s option.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Tensile Stength (N/5cm)
TP06-66	1000-1250	0.060	66	600
TP115-138	1000-1500	0.115	138	1100
TP20-285	1000-2600	0.200	285	2500
TP32-360	1000-2600	0.320	360	3400

Texflon Crease & Tear Resistant PTFE Coated Fiberglass Fabrics Texflon Crease & tear resistant PTFE coated fiberglass fabrics is the strongest, crease resistant, most durable fabric. It has minimal fabric impression and optimal PTFE content, with special treatment to deliver superior tear strength, more flexible and crease resistance. Texflon Crease & tear resistant PTFE coated fiberglass fabrics are mainly used in high speed packaging applications and as edge reinforcement for industrial belts in the plastics and packaging lines.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Tensile Stength (N/5cm)
TCT075-135	1000-1500	0.075	135	800
TCT115-230	1000-1500	0.115	230	1100
TCT14-255	1000-1500	0.140	255	1500
TCT15-300	1000-1500	0.150	300	1500
TCT23-490	1000-1500	0.230	490	2600

Texflon Tortilla PTFE Coated Fiberglass Fabrics Texflon Tortilla PTFE coated fiberglass fabrics have the best non-stick, abrasion resistance,non wicking and are able to survive the oil and grease exposure during the stamping and conveying process.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Color
TT18-367	500 - 1000	0.18	367	Brown/Blue/Maroon/Black
TT20-412	500 - 1000	0.20	412	Brown/Blue/Maroon/Black
TT25-492	500 - 1500	0.25	492	Brown/Blue/Maroon/Black
TT26-550	500 - 1500	0.26	550	Brown/Blue/Maroon/Black
TT28-575	500 - 1500	0.28	575	Brown/Blue/Maroon/Black
TT30-622	500 - 1500	0.30	622	Brown/Blue/Maroon/Black

Texflon Carpet Belting PTFE Coated Fiberglass Fabrics Texflon Carpet Belting PTFE coated fiberglass fabric is a new developed fluoropolymer coated on high density woven glass fiber fabric, mainly used in the carpet industry. The special process make fabric no micro-pin-holes and micro-mud-cracks, with the best mold release performance, excellent good abrasion resistance and high tear resistance which makes the fabric have longer life than the similar products in the market. Application: PVC backing carpet conveyor belt or release sheet, Door pad baking, Rubber curing.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Color
TCB70-1100 W	1000-2700	0.70	1100	White
TCB70-1100 B	1000-2700	0.70	1100	Light Brown
TCB85-1230	1000-2700	0.85	1230	White
TCB95-1385	1000-2700	0.95	1385	White

Texflon Meat Grill PTFE Coated Fiberglass Fabrics Texflon Meat Grill PTFE coated fiberglass fabric is a developed special fabric which are used in various food process,such as conveyor belting,contact cooking,baking,cooling and freezing,etc. Texflon standard high temperature cloth has a drawback, in the processing of meat products, the resulting grease and oil can penetrate into the cloth and is soaked up by the glass yarns. A great impact on the health of the food, shortening the life of the cloth. Now we adopt a special manufacturing process, making our PTFE fabrics to the greatest extent of resistance to the penetration of grease, improves the life of conveyor blet. Application: it's used for Chicken & Meat Cooking/Grilling, ideal for food processing applications such as precooking steak,chicken,ground meat as well as dough pressing of Tortilla,pizza crust and other food itmes.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Color
TMG18-380	1000-1500	0.18	380	Blue/Red/Brown
TMG22-490	1000-1500	0.22	490	Brown/Blue
TMG26-540	1000-1500	0.26	540	Brown/Blue
TMG30-630	1000-1500	0.30	630	Black/Brown

Texflon Welding PTFE Coated Fiberglass Fabrics Texflon Welding PTFE coated fiberglass fabric is developed sepically for PVC window & door welding & mould release. The release fabrics provide a long lasting, non stick surface with excellent chemical resistance.The high release properties prevent the molten PVC from sticking to the metal. The excellent value for thermal transfer are a guarantee for optimal welding results. Application: it's widly used as a release mediumfor PVC window & door welding equipment covering the high temp platens that weld the corners of the PVC window & door extrusion together.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Color
TW13-270	1000-1500	0.13	270	Blue/Brown/Gold
TW14-296	1000-1500	0.14	296	Blue/Brown/Gold
TW15-320	1000-1500	0.15	320	Blue/Brown/Gold

Texflon Abrasive PTFE Coated Fiberglass Fabrics Texflon Abrasive PTFE coated fiberglass fabric is developed sepically for grinding wheel manufacture. It provides a long lasting, non stick surface with excellent abrasion resistance.The clean release properties of the PTFE coating and the strength of the fibreglass substrate allow for clean, reliable separation. The abrasive fabrics are mostly acted as non-stick separators for the process of manufacturing grinding wheels.
Model	Width (mm)	Thickness (mm)	Weight (g/m2)	Color
TA35-400	1000-2500	0.34	400	Blue/Brown
TA100-780	1000-2600	1.00	780	Brown

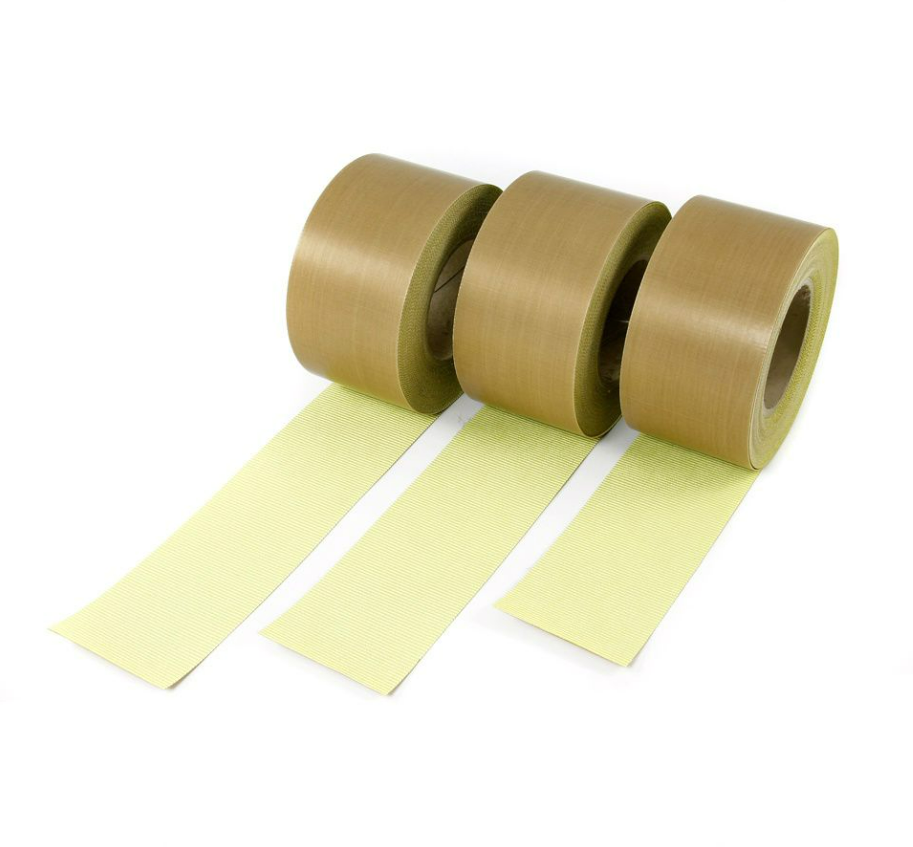

Texflon PTFE Adhesive Taps
Texflon PTFE adhesive tapes made from PTFE coated fiberglass fabrics with one side high temperature pressure sensitive silicone adhesive coated with yellow color embossed PVC release paper. It's Operational and dimensionally stable from -100°F (-73° C) to +550°F (+288°C), with excellent release characteristics, low surface friction, abrasion and Chemical resistant, also FDA compliant for food processing. There are different types Texflon PTFE adhesive tapes specified in different applications, such as Texflon plus, Texflon standard, Texflon minus, Texflon black anti-static.

Texflon Plus PTFE Coated Fiberglass Fabrics Adhesive Tapes Texflon Plus PTFE adhesive tape are made from Texflon Plus PTFE coated fiberglass fabrics with one side high temperature pressure sensitive silicone adhesive coated with yellow color embossed PVC release paper. It has extremely smooth surface for particular usages.
Model	Width (mm)	With Adhesive Thickness (mm)	Fabric + Adhesive Weight (g/m2)	Adhesion (N/cm)
TP08-155AD	1000-1500	0.013	155 + 55	4.50
TP13-270AD	1000-1500	0.180	270 + 60	5.50
TP15-316AD	1000-1500	0.200	316 + 65	5.60
TP25-530AD	1000-1500	0.300	530 + 65	6.20

Texflon Standard PTFE Coated Fiberglass Fabrics Adhesive Tapes Texflon Standard PTFE adhesive tapes are made from Texflon Standard PTFE coated fiberglass fabrics with one side high temperature pressure sensitive silicone adhesive coated with yellow color embossed PVC release paper. It has superior smooth surface for most popular usages.
Model	Width (mm)	Without Adhesive Thickness (mm)	Fabric + Adhesive Weight (g/m2)	Tensile Strength (N/5cm)
TS075-135AD	1000-1250	0.075	135 + 55	600
TS125-255AD	1000-2000	0.125	255 + 60	1100
TS14-300AD	1000-1250	0.140	300 + 65	1100
TS23-490AD	1000-2800	0.230	490 + 65	2100

Texflon Minus PTFE Coated Fiberglass Fabrics Adhesive Tapes Texflon Minus PTFE adhesive tapes are made from Texflon Minus PTFE coated fiberglass fabrics with one side high temperature pressure sensitive silicone adhesive coated with yellow color embossed PVC release paper. It has minus smooth surface with low content PTFE coating. It is a cheaper quality developed to achieve cost effective performance in the manufacure of heat-sealing bags, release sheets, baking liners, it's widely used in some large volume industrial applications which is more sensitive to the price. Application: Separator sheets for processing uncured rubber, Food baking sheets, Gaskets, seals and bearings for chemicals, oils and gases, Covers for hot plates, platens, chutes, hoppers, and rolls, Processing paper, plastics, metallic foils and cloth.
Model	Width (mm)	Without Adhesive Thickness (mm)	Fabric + Adhesive Weight (g/m2)	Adhesion (N/cm)
TM07-110AD	1000	0.07	110 + 55	4.50
TM11-235AD	1000	0.11	235 + 60	5.50
TM22-455AD	1000	0.22	455 + 65	5.60

Texflon Black Anti-static PTFE Coated Fiberglass Fabrics Adhesive Tapes Texflon Black Antistatic PTFE adhesive tapes are made from Texflon Black Antistatic PTFE coated fiberglass fabrics with one side high temperature pressure sensitive silicone adhesive coated with yellow color embossed PVC release paper. It contains a proprietary static dissipation additive to eliminates static electricity during operation. It provides an anti-static properties to the material which eliminates or reduces static problems in belt and slip sheet applications. Application: Release sheets and as conveyor belts for fusing machines to bond woven & non-woven fabrics.
Model	Width (mm)	Without Adhesive Thickness (mm)	Fabric + Adhesive Weight (g/m2)	Adhesion (N/5cm)
TA08-135AD	1000-1250	0.075	135 + 55	4.50
TA11-230AD	1000-1250	0.11	230 + 60	5.50
TA12-250AD	1000-1250	0.12	250 + 60	5.50
TA23-490AD	1000-1250	0.23	490 + 65	6.2

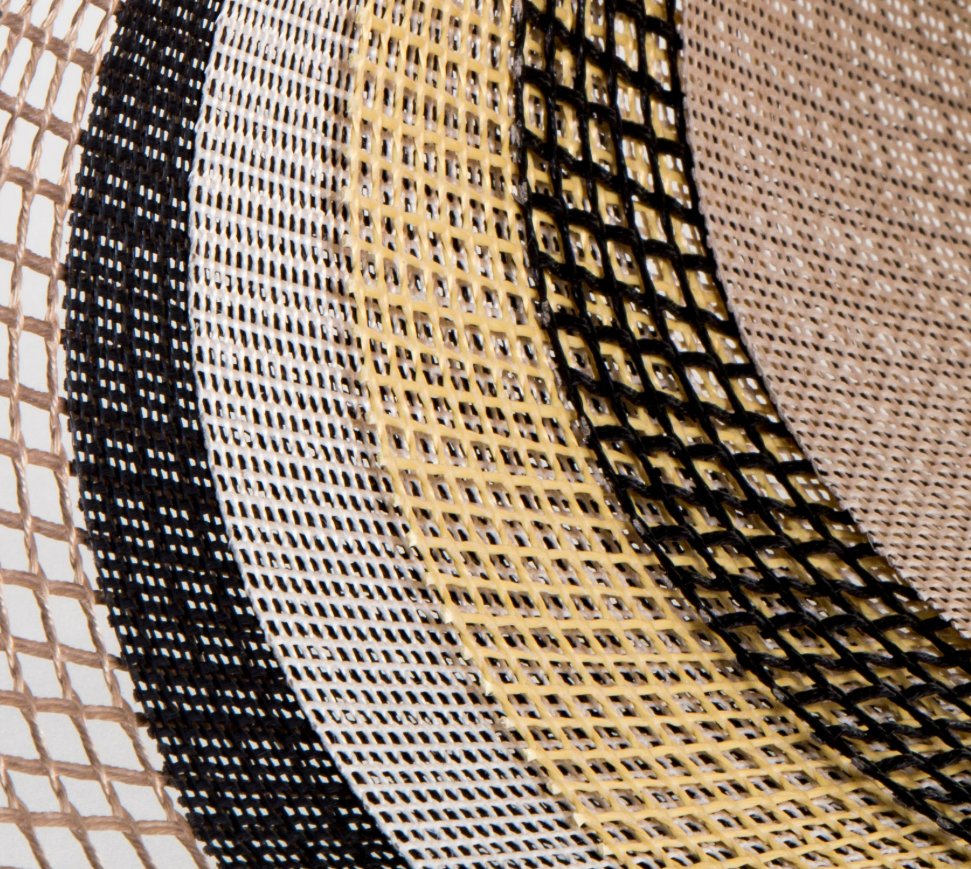

Texflon Meshes
Texflon PTFE coated fiberglass meshs are made of fiberglass meshes with both sides PTFE dispersion impregnated. The open mesh area allows maximum air flow optimising drying times. Designed to operate in extremes of both temperature and chemical exposure,ptfe mesh belts have been a natural choice for dryer manufactures.It is ideally suited for conveying products and is commonly used in a wide variety of industries,such as gas, electric, infrared(IR), radio frequency(RF), microwave and ultraviolet(UV) conveyorized drying operations. It's Operational and dimensionally stable from -100°F (-73° C) to +550°F (+288°C), with excellent release characteristics, low surface friction, abrasion and Chemical resistant, also FDA compliant for food processing.

Model	Mesh Size	Material	Thickness	Weight	Max Width	Colour
TM6001	1x1mm	fiberglass	0.75mm	560g/m²	4000mm	Brown
TM6001 AS	1x1mm	fiberglass	0.75mm	560g/m²	4000mm	Black
TM6004	4x4mm	fiberglass	1.0mm	450g/m²	4000mm	Brown
TM6004 AS	4x4mm	fiberglass	1.0mm	450g/m²	4000mm	Black
TM6004 Blue	4x4mm	fiberglass	1.0mm	490g/m²	4000mm	Blue
TM6008	4x4mm	fiberglass	1.0mm	600g/m²	4000mm	Brown
TM6008 Blue	4x4mm	fiberglass	1.0mm	600g/m²	4000mm	Blue
TM6008 AS	4x4mm	fiberglass	1.0mm	600g/m²	4000mm	Black
TM6002	2x2.5mm	fiberglass	0.70mm	505g/m²	4000mm	Brown
TM6002 AS	2x2.5mm	fiberglass	0.70mm	505g/m²	4000mm	Black
TM6025	2x2.5mm	fiberglass	1.0mm	700g/m²	4000mm	Brown
TM6025 Blue	2x2.5mm	fiberglass	1.0mm	800g/m²	4000mm	Blue
TM6025 AS	2x2.5mm	fiberglass	1.0mm	700g/m²	4000mm	Black
