Texseal Insulation Textiles

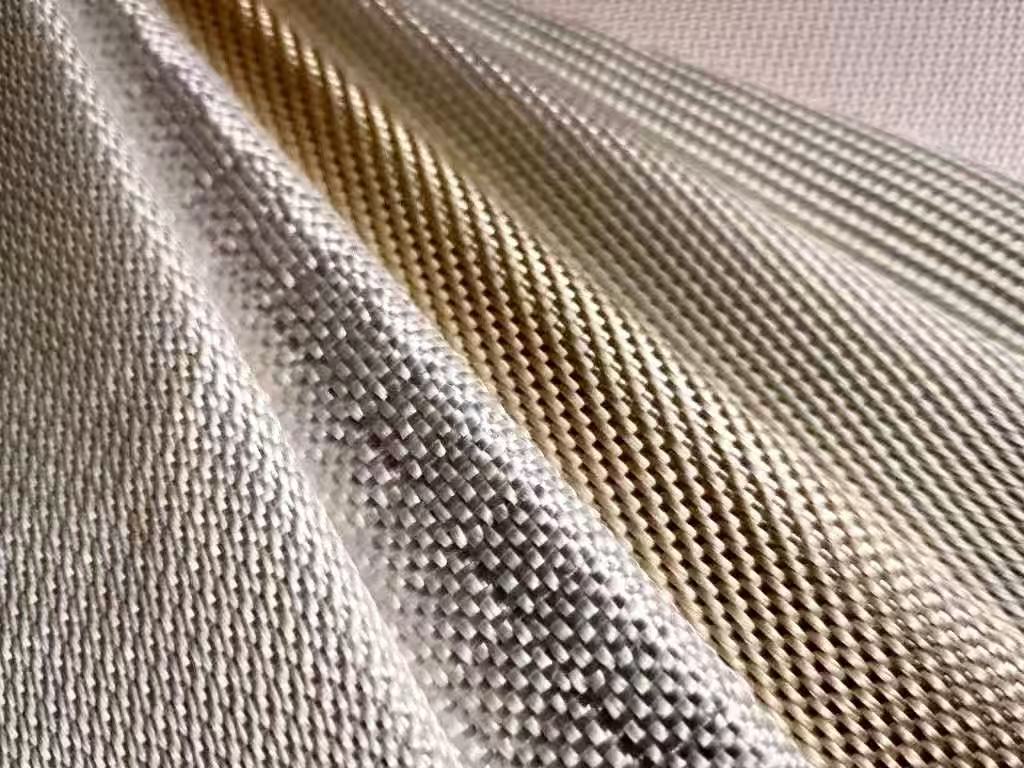

Fiberglass Fabrics
Most popular filament fiberglass yarn woven fabrics for thermal insulation and heat protection, available with various coating materials for high performance.

Code

Thickness
(mm)

Weight
(g/m2)

Weave

Temp

(℃)

WFF102

0.20

200

Plain

550

WFF1041

0.40

430

Twill

550

WFF106

0.60

600

Check

550

WFF1062

0.60

660

Satin

550

WFF108

0.80

880

Satin

550

WFF113

1.30

1300

Satin

550

WFF117

1.70

1700

Satin

550

Available width: 1000mm, 1200mm, 1270mm, 1300mm, 1520mm, 1800mm.

Coated fiberglass fabrics: please contact us to obtain FIRETEX Catalogue.

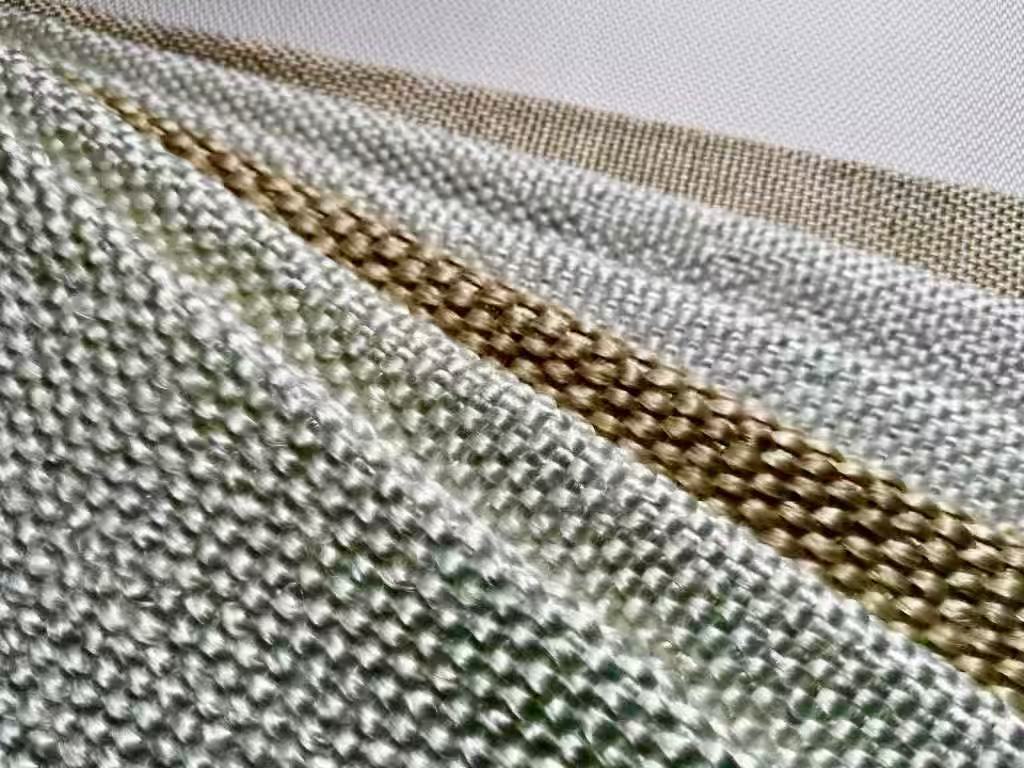

Texturized Fiberglass Fabrics
Texturized fiberglass yarn woven fabrics for thermal insulation and heat protection, available with various coating materials for higher temperature.

Code

Thickness
(mm)

Weight
(g/m2)

Weave

Temp

(℃)

WFF208

0.80

600

Plain

550

WFF210

1.00

800

Plain

550

WFF215

1.50

1000

Plain

550

WFF220

2.00

1330

Plain

550

WFF230

3.00

1800

Plain

550

Available width: 1000mm, 1200mm, 1500mm.

Coated fiberglass fabrics: please contact us to obtain FIRETEX Catalogue.

TEXSEAL ULTRA Texturized Fiberglass Fabrics
TEXSEAL ULTRA Texturized fiberglass yarn in 6micron or 9 micron woven fabrics for thermal insulation and heat protection, available with various coating materials for higher temperature.

Code

Thickness
(mm)

Weight
(g/m2)

Weave

Temp

(℃)

84215

0.38

288

Plain

550

2025

0.75

600

Plain

550

2115

0.80

645

Plain

550

M24

1.00

815

Plain

550

M30

1.50

1020

Plain

550

M30S

1.50

1150

Plain

M34

1.50

1150

Plain

M35

1.60

1190

Plain

M52

3.00

1780

Panama

M60

3.00

2050

Plain

2626

1.20

950

Twill

M35(G)

1.50

1200

Panama

EWTF750

0.75

750

Satin Double Weft

Available width: 1000mm, 1200mm, 1500mm, 1800mm, 2000mm

Coated fiberglass fabrics: please contact us to obtain FIRETEX Catalogue.

Texsil Silica Fabrics
Most popular tan color silica fabrics for molten metal welding blankets, fire curtains, removable insulation blankets, car fire blankets, heat insulation.

Code

Product

Thickness
(mm)

Weight
(g/m2)

Temp

(℃)

WSF030TH

Texsil Silica Fabric

0.30

300

1000

WSF040TH

Texsil Silica Fabric

0.40

400

1000

WSF075TH

Texsil Silica Fabric

0.75

600

1000

WSF100TH

Texsil Silica Fabric

1.00

880

1000

WSF130TH

Texsil Silica Fabric

1.30

1100

1000

WSF140TH

Texsil Silica Fabric

1.40

1220

1000

WSF150TH

Texsil Silica Fabric

1.50

1350

1000

Available width: 914mm, 1000mm, 1200mm, 1300mm.

Available color: tan color, white color, black color

Property: SiO2 >96%, LOI <10%, Linear Shrinkage <10%

Coated silica fabrics: please contact us to obtain TEXSIL Catalogue.

TEXSIL ECO Silica Fabrics
ECO silica fabrics in tan color for welding blankets.

Code

Product

Thickness
(mm)

Weight
(g/m2)

Temp

(℃)

WSF075TM

ECO Silica Fabric

0.75

600

800

WSF130TM

ECO Silica Fabric

1.30

1100

800

Available width: 914mm, 1000mm, 1200mm, 1300mm, 1500mm.

Property: SiO2 > 70%

Ceramic Fiber Fabrics
Ceramic fiber yarn woven fabrics for thermal insulation and heat protection, available with fiberglass reinforcement or steel wire reinforcement.

Code

Thickness
(mm)

Weight
(g/m2)

Reinforcement

Temp

(℃)

WCF215

1.50

920/950

Glass/Steel

650/1050

WCF220

2.00

1000/1100

Glass/Steel

650/1050

WCF230

3.00

1400/1500

Glass/Steel

650/1050

WCF250

5.00

1800/1850

Glass/Steel

650/1050

WCF260

6.00

2400/2500

Glass/Steel

650/1050

Available width: 1000mm, 1200mm, 1500mm.

Available coatings: aluminum foil, vermiculite, heat treatment, silicone rubber

Heat Treated Ceramic Fiber Fabrics
Heat treatment is a burning process in high temperature funace to burn out organic contents and make the ceramic fiber fabric purity to reduce smoke and smell when it's placed in the final working sourroundings. Fray resistance treatment is available upon request.

Code

Thickness
(mm)

Weight
(g/m2)

Reinforcement

Temp

(℃)

WCF215H

1.50

800

Steel

1050

WCF220H

2.00

880

Steel

1050

WCF230H

3.00

1350

Steel

1050

WCF250H

5.00

1550

Steel

1050

WCF260H

6.00

2100

Steel

1050

Available width: 1000mm, 1200mm, 1500mm.

Vermiculite Coated Ceramic Fiber Fabrics
Vermiculite is an inorganic and non combustable material, the coating can work as a fire proof barrier on ceramic fiber fabric with wire reinforcement, it will enhance the fabric to resist molten metal slags for long time using life, widely used in ship yard ground welding, and the heavy duty welding blankets.

Code

Thickness
(mm)

Weight
(g/m2)

Reinforcement

Temp

(℃)

WCF220V

2.00

1100

Steel Wire

1050

WCF230V

3.00

1450

Steel Wire

1050

Available blanket dimensions with eyelets on four edges: 1x1m, 1x2m, 1x3m, 2x2m, 2x3m

Bio Soluble Fiber Fabrics
Bio Soluble fiber yarn woven fabrics in greenish color for thermal insulation and heat protection, it’s environment friendly and human health care.

Code

Thickness
(mm)

Weight
(g/m2)

Reinforcement

Temp

(℃)

WBS220

2.00

1100

Glass/Steel

650/1050

WBS230

3.00

1500

Glass/Steel

650/1050

WBS250

5.00

2500

Glass/Steel

650/1050

Available width: 1000mm, 1200mm, 1500mm.

Carbonized Fiber Fabrics
Carbonized fiber yarn woven fabrics is not itching, for heat protection as welding blankets to replace fiberglass fabrics.

Code

Thickness
(mm)

Weight
(g/m2)

Weave

Temp

(℃)

WOF216A

1.60

500

Plain

400-1000

WOF216B

1.60

450

Plain

400-850

WOF216C

1.60

500

Plain

400-850

WOF216D

1.60

550

Plain

400-850

Available width x length: 1000mm x 30m

WOF216A is non-flammable.

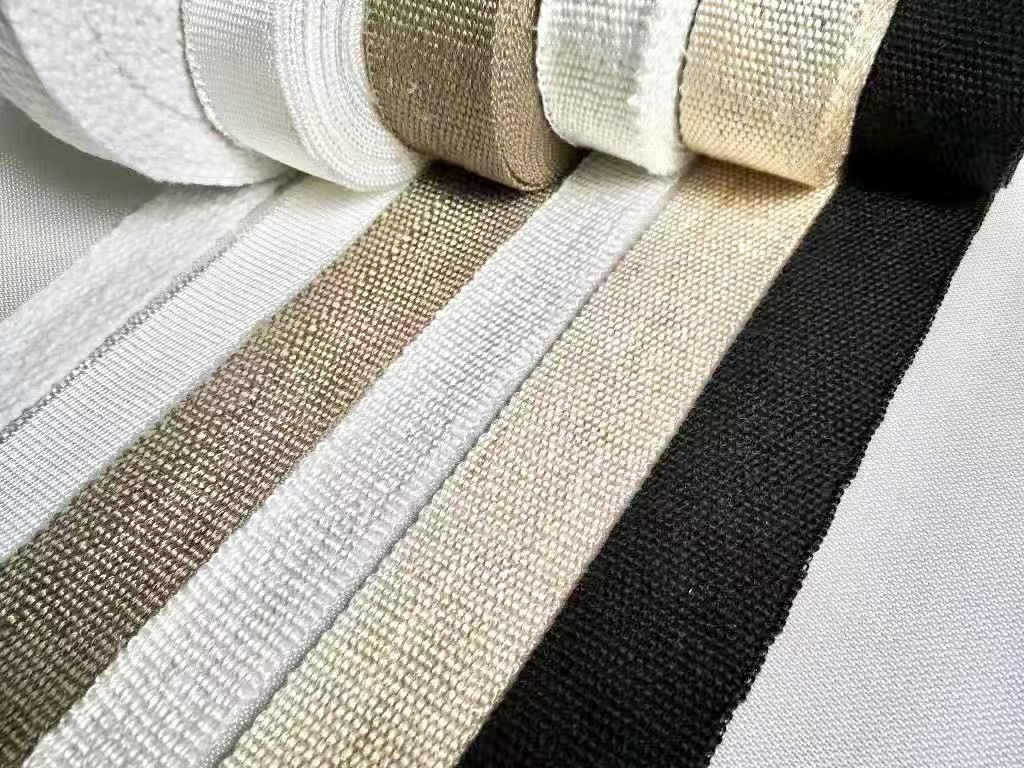

Fiberglass Woven Tape
It's made from the bulk texturized fiberglass yarns provide good thermal insulation and heat protection. With middle warp yarns take out can make fiberglass ladder tape, also named as bolt hole tape, drop warp tape.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WFT108

0.80

WFT130

3.00

550

WFT110

1.00

WFT150

5.00

550

WFT115

1.50

WFT160

6.00

550

WFT120

2.00

Available width: 12,15,20,25,30,40,50,60,75,100,150,200mm.

Coatings: vermiculite, graphite, heat treated, aluminum foil, dyeing, silicone rubber, adhesive back with release paper

Fiberglass Ladder Tape
It's made from the bulk texturized fiberglass yarns provide good thermal insulation and heat protection. With middle warp yarns take out can make fiberglass ladder tape, also named as bolt hole tape, drop warp tape.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WFT208

0.80

WFT230

3.00

550

WFT210

1.00

WFT250

5.00

550

WFT215

1.50

WFT260

6.00

550

WFT220

2.00

Available width: 12,15,20,25,30,40,50,60,75,100,150,200mm.

Coatings: vermiculite, graphite, heat treated, aluminum foil, dyeing, silicone rubber, adhesive back with release paper

Electrical Insulation Fiberglass Tape
It's made from the electrical grade filament fiberglass yarns with very thin thickness and extremely smooth surface, normally use paraffin sizing tape for electrical insulation, silane or starch sizing tape for composite with resins.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WFT308

0.08

WFT320

0.20

550

WFT313

0.13

WFT325

0.25

550

WFT315

0.15

WFT330

0.30

550

WFT318

0.18

WFT332

0.32

550

Available width: 12,15,20,25,30,40,50,60,75,100,150,200mm.

Sizing paraffin for electrical insulation; Sizing silane/starch for composite.

Fiberglass Knitted Tape
The knitted fiberglass tapes are popular used in oven door gasket in very narrow width 10mm, 12mm, 15mm, 20mm, the most popuar thickness is 2mm and 3mmm, dye it in black color or grey color, then put adhesive back with release paper.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WFT420

2.00

WFT440

4.00

550

WFT430

3.00

WFT450

5.00

550

Available width: 10,15,20,25mm

Coatings: graphite, adhesive back with release paper

Basalt Fiber Woven Tape
The basalt fiber woven tape can be made by filament basalt fiber yarn which get the very shining and smooth surface basalt fiber woven tape for personal racing motorcycle exhaust pipes heat protection.

Code

Thickness
(mm)

Weight
(g/m)

Weave

Temp

(℃)

WBT308

0.80

44

Twill/ Plain

680

WBT315

1.50

60

Twill/ Plain

680

WBT330

3.00

120

Plain/Twill

680

Available width: 25, 50, 75,100mm.

Texturized Basalt Fiber Woven Tape
It's made from texturized basalt fiber yarns to texturized basalt fiber woven tape which has a matt titanium color while it has better insulation with bulk texturized yarns than the filament woven tape.

Code

Thickness
(mm)

Weight
(g/m)

Weave

Temp

(℃)

WBT115

1.50

60

Plain

680

WBT130

3.00

120

Plain

680

Available width: 25, 50, 75,100mm.

Ceramic Fiber Woven Tape
It's made from ceramic fiber yarns with fiberglass reinforced or additional steel wire reinforced, the main content of ceramic fiber will resist temperature up to 1260degree C, the carrier fiber inside ceramic fiber tape may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage. Addtional heat clean service to burn out carrier fiber is available upon request.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WCT220

2.00

WCT230

3.00

650/1050

WCT250

5.00

WCT260

6.00

650/1050

Available width: 25,30,40,50,60,75,100,150,200mm.

Reinforcement: fiberglass filament or steel wire

Ceramic Fiber Ladder Tape
It's made from ceramic fiber yarns with fiberglass reinforced or additional steel wire reinforced, with part of middle warp yarns take out can make ceramic fiber laddder tape, the main content of ceramic fiber will resist temperature up to 1260degree C, the carrier fiber inside ceramic fiber tape may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage. Addtional heat clean service to burn out carrier fiber is available upon request.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WCT220L

2.00

WCT230L

3.00

650/1050

WCT250L

5.00

WCT260L

6.00

650/1050

Available width: 25,30,40,50,60,75,100,150,200mm.

Reinforcement: fiberglass filament or steel wire

Bio Soluble Fiber Woven Tape
It's made from bio soluble fiber yarn which has fiberglass reinforced or additional steel wire reinforced, the main content of bio soluble fiber will resist temperature up to 1260degree C, the carrier fiber inside tape may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage. Addtional heat clean service to burn out carrier fiber is available upon request.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WBS220

2.00

WBS230

3.00

650/1050

WBS250

5.00

WBS260

6.00

650/1050

Available width: 25,30,40,50,60,75,100,150,200mm.

Reinforcement: fiberglass filament or steel wire

Spun Silica Fiber Woven Tape
It's made from silica fiber yarn which has fiberglass reinforced or additional steel wire reinforced, the main content of silica fiber will resist temperature 1000degree C continuously, 1200 degree C long time, 1400 degree C instantly, and molten temperature up to 1700degree C, the carrier fiber inside tape may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage. Addtional heat clean service to burn out carrier fiber is available upon request.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WST320

2.00

WST30

3.00

1000

WST350

5.00

WST360

6.00

1000

Available width: 25,30,40,50,60,75,100,150,200mm.

Reinforcement: fiberglass filament or steel wire

Spun Alumina Fiber Woven Tape
It's made from alumina fiber yarn which has fiberglass reinforced or additional steel wire reinforced, the main content of alumina fiber will resist temperature 1200degree C continuously, 1300 degree C long time, 1500 degree C instantly, and molten temperature up to 1850degree C, the carrier fiber inside tape may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage. Addtional heat clean service to burn out carrier fiber is available upon request.

Code

Thickness
(mm)

Code

Thickness
(mm)

Temp

(℃)

WAFT320

2.00

WAFT330

3.00

1200

WAFT350

5.00

WAFT360

6.00

1200

Available width: 25,30,40,50,60,75,100,150,200mm.

Reinforcement: fiberglass filament or steel wire

Para Aramid Tape Rope
Para aramid tapes and ropes are made from continuously para aramid yarns, mainly for glass tempering furnace roller usage, and draw cords of removable insulation blankets.

Size
(mm)

Size
(mm)

Size
(mm)

Size
(mm)

Size
(mm)

8x1.5

8x2

8x3

8x4

8x5

9x3

10x2

10x2.5

10x3.5

10x4

10x5

12x1.5

12x2.5

12x3

12x3.5

12x4

12x5

12x5.5

4x4

5x5

5.5x5.5

6x6

10x3*

10x3.5*

12x3.5*

4x4*

5x5*

5.5x5.5*

6x6*

Customized

* Para aramid yarn tape, the rest are para aramid continuous filament tape

Stock roll length 250meters on spindle

Texsil Pro Silica Woven Tape
Texsil Pro silica woven tapes are pre-shrunk heat treated to minimize the shrinkage in high temperature working places to wrap hoses, tubes and pipes, oven door gaskets, composite reinforcement, etc.

Code

Weave
Patten

Thickness
(mm)

Weight
(g/m2)

Temp

(℃)

WST

Plain/Twill/Satin

0.10 – 3.00

85 - 3000

1000

Available width: 25mm - 100mm

Property: SiO2 >96%, LOI <3%, Linear Shrinkage <5%

Please contact us to get TEXSIL catalogue for full series silica woven tape.

SUS 316L SS Fiber Woven Tape
Molding covering for automotive glass and other glass manufacturing process, it can improve the smooth appearance of glass bottles, sheets.

Code

Thickness
(mm)

Width
(mm)

Weave

Temp

(℃)

WKT04

0.40

17/25/40

Twill

650

WKT06

0.60

50/80

Twill

650

Customized thicknesses are available

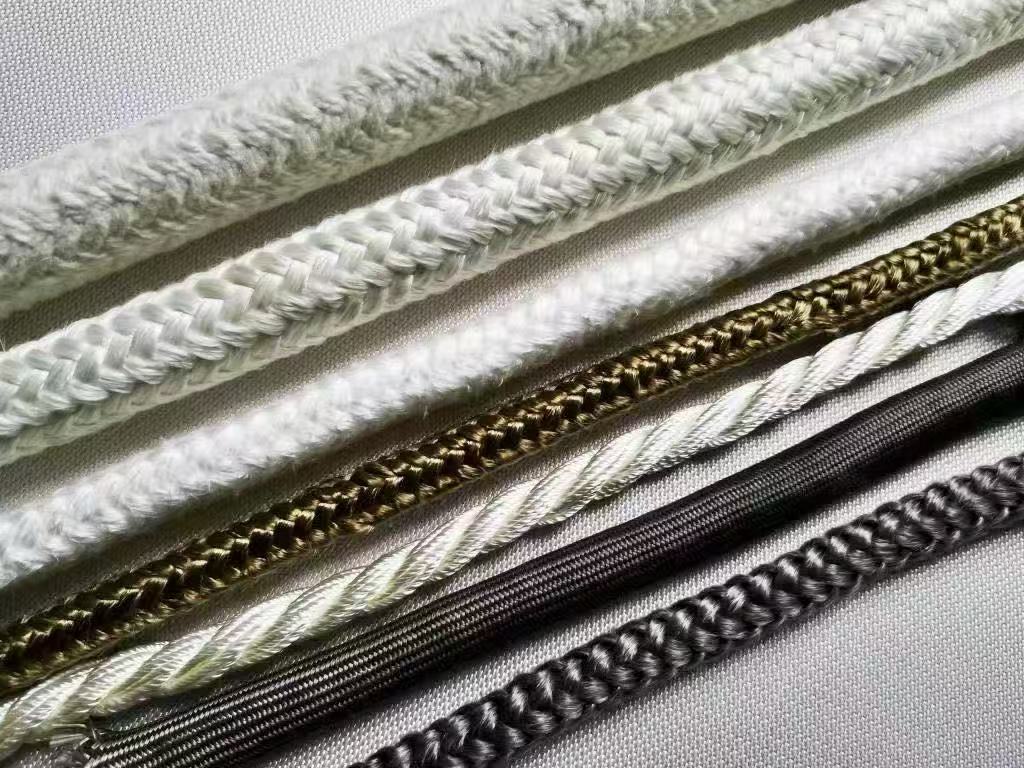

Texsil Silica Rope
Including silica round braided ropes, square braided ropes, lagging ropes.

Code

Shape

Size
(mm)

Density
(kg/m3)

Temp

(℃)

WSR1

Round Braided

6 - 120

1000±200

1000

WSR2

Square Braided

6 - 120

1000±200

1000

WSR3

Lagging Rope

12 -120

500±200

1000

Customized sizes upon request.

Lagging rope can use different core materials.

Fiberglass Rope
Including fiberglass round braided ropes, square braided ropes, recangular braided ropes, twsited ropes, knitted ropes, wick ropes, lagging ropes with fiberglass blanket core, lagging ropes with ceramic blanket core.

Code

Rope
Type

Size
(mm)

Coatings

Temp

(℃)

WFR1XX

Round braided

3 - 120

Yes

550

WFR2XX

Square braided

4x4 - 120x120

Yes

550

WFR3XX

Rectangular

10x20 - 50x100

Yes

550

WFR4XX

Twisted

3 - 30

No

550

WFR5XX

Knitted

5 - 32

Yes

550

WFR6XX

Lagging

12-50

No

550

Coatings: silicone rubber, vermiculite, graphite, PTFE

Ceramic Fiber Rope
Including ceramic fiber round braided ropes, square braided ropes, recangular braided ropes, twsited ropes,  lagging ropes with ceramic blanket core open yarn mesh, or close yarn mesh.

Code

Rope
Type

Size
(mm)

Coatings

Temp

(℃)

WCR1XX

Round braided

5 - 120

Yes

650/1050

WCR2XX

Square braided

5x5 - 120x120

Yes

650/1050

WCR3XX

Rectangular

10x20 - 80x100

Yes

650/1050

WCR4XX

Twisted

3 - 50

No

650/1050

WCR5XX

Lagging

12 - 50

No

650/1050

WCR6XX

Cabled

12 – 50

No

650/1050

Coatings: silicone rubber, graphite, wire mesh over braided

Reinforcement: fiberglass filament or steel wire

Bio Soluble Fiber Rope
Including basalt round braided ropes, square braided ropes, recangular braided ropes, twsited ropes, knitted ropes, wick ropes, lagging ropes with basalt blanket core, lagging ropes with ceramic blanket core.

Code

Rope
Type

Size
(mm)

Coatings

Temp

(℃)

WBOR1XX

Round braided

5 - 120

Yes

650/1050

WBOR2XX

Square braided

5x5 - 120x120

Yes

650/1050

WBOR3XX

Rectangular

10x20 - 80x100

Yes

650/1050

WBOR4XX

Twisted

3 - 50

No

650/1050

WBOR5XX

Lagging

12 - 50

No

650/1050

WBOR6XX

Cabled

12 – 50

No

650/1050

Reinforcement: fiberglass filament or steel wire

SUS 316L SS Fiber Braided Rope
Covering and buffer material during glass bottles manufacture process, and also can be used as mold separator for other glass manufacturing process.

Code

Size
(mm)

Braided
Layer

Shape

Temp

(℃)

WKR131

3.00

1

Round / Hollow

650

WKR161

6.00

1

Round / Hollow

650

WKR231

3.00

1

Round / Solid

650

WKR232

3.00

2

Round / Solid

650

WKR241

4.00

1

Round / Solid

650

WKR242

4.00

2

Round / Solid

650

WKR251

5.00

1

Round / Solid

650

WKR252

5.00

2

Round / Solid

650

WKR261

6.00

1

Round / Solid

650

WKR262

6.00

2

Round / Solid

650

WKR331

3.00

1

Square / Solid

650

WKR361

6.00

2

Square / Solid

650

Customized sizes are available

SUS 316L SS Fiber Braided/Knitted Sleeve
It's made from continuously SUS 316L stainless steel fiber yarns, mainly for glass tempering furnace roller usage.

Code

Sleeve
Type

Size
(mm)

Coatings

Temp

(℃)

WKS1XX

Braided

10 - 120

No

650

WKS3XX

Knitted

10 - 100

No

650

Texsil Pro Silica Braided Sleeve
Pro silica braided sleeves are pre-shrunk heat treated to minimize the shrinkage in high temperature for wrap wires, hoses, tubes and pipes, etc.. Economical Texsil silica braided sleeve also available upon request for industrial thermal insulation.

Code

ID
(mm)

Thickness
(mm)

Weight
(g/m)

Temp

(℃)

WSS105

5 – 80

0.7 – 1.6

15 - 180

1000

Property: SiO2 >96%, LOI <5%, Shrinkage <5%

Please contact us to get TEXSIL catalogue for full series silica woven tape.

Fiberglass Sleeve
Fiberglass sleeve including braided fiberglass sleeve, knitted fiberglass sleeve, plain weave fiberglass sleeve without elastic. Filament yarn braided fiberglass sleeve can be used as electrical insulation, also can be used to coat PVC, silicone resin, silicone rubber, saturated resin, etc. for better electrical insulation to resist higher voltage. Texturized yarn braided fiberglass sleeve can be used as thermal insulation layer for pipes, hoses, cables, and wires. Plain weave fiberglass sleeve is an old technology for some paticular usage, we have machines to produce it regularly.

Code

Sleeve
Type

Size
(mm)

Coatings

Temp

(℃)

WFS1XX

Filament Braided

1 - 120

Yes

550

WFS2XX

Texturized Braided

10 - 100

Yes

550

WFS3XX

Knitted

6 - 100

Yes

550

WFS4XX

Woven Tubular

10 - 100

No

550

Coatings: silicone rubber, acrylic, PVC, silicone resin, heat treated, weave lock, vermiculite, etc.

Basalt Fiber Sleeve
Basalt fiber sleeve including filament basalt yarn braided fiberglass sleeve with shinning titanium color and smooth surface, knitted basalt fiber sleeve for exhaust pipe heat protection with flexible and elastic handling to cut without fray yarns, texurized yarn basalt fiber sleeve is bulk yarn with thicker wall to generate better thermal insulation.

Code

Sleeve
Type

Size
(mm)

Coatings

Temp

(℃)

WBS1XX

Filament Braided

1 - 120

Yes

680

WBS2XX

Texturized Braided

10 - 100

No

680

WBS3XX

Knitted

6 - 100

No

680

Ceramic Fiber Sleeve
Ceramic fiber sleeve including braided ceramic fiber sleeve with flexibility, and plain weave ceramic fiber sleeve without elasticity. Plain weave ceramic fiber sleeve is an old technology for some paticular usage, we have machines to produce it regularly.

Code

Sleeve
Type

Size
(mm)

Coatings

Temp

(℃)

WCS2XX

Braided

10 - 120

Yes

650/1050

WCS3XX

Woven Tubular

20 - 120

No

650/1050

Reinforcement: fiberglass filament or steel wire

Coatings: silicone rubber, vermiculite, graphite, etc.

Bio Soluble Fiber Sleeve
Bio Soluble fiber sleeve including braided bio soluble fiber sleeve with flexibility, and plain weave bio soluble fiber sleeve without elasticity. Plain weave bio soluble fiber sleeve is an old technology for some paticular usage, we have machines to produce it regularly.

Code

Sleeve
Type

Size
(mm)

Coatings

Temp

(℃)

WBOS2XX

Braided

10 - 120

Yes

650/1050

WBOS3XX

Woven Tubular

20 - 120

No

650/1050

Reinforcement: fiberglass filament or steel wire

Coatings: silicone rubber, vermiculite, graphite, etc.

Texsil Silica Needle Mat
Texsil silica needle mat use 96% silica fiber yarn through needling process without any adhesive, it's 100% pure silica fiber product. Excellent insulation layer for exhaust pipes, heat shields, removable insulation blankets. Pre shrunk silica needle mat is available for less shrinkage.

Code

Thickness
(mm)

Shrinkage
(%)

Density
(kg/m3)

Temp

(℃)

WSN

3 – 25

<13

130/160

1000

WSNP

6 – 25

<3

130/160

1000

Property: SiO2 >96%

Pre shrunk heat treated silica needle mat is available.

ECR Fiber Needle Mat
Texsel ECR fiber needle mat use ECR grade fiber yarn through needling process without any adhesive, it's 100% pure ECR fiber product. Excellent insulation layer for exhaust pipes, heat shields, removable insulation blankets. ECR fiber resist higher temperature than E glass fiber.

Code

Thickness
(mm)

Width
(mm)

Density
(kg/m3)

Temp

(℃)

WRN

3 – 25

50 – 3000

120 – 180

750

E Glass Fiber Needle Mat
Texsel E glass fiber needle mat use E grade glass fiber yarn through needling process without any adhesive, it's 100% pure E glass fiber product. Most popular insulation layer for removable insulation blankets, exhaust pipes, heat shields. E Glass fiber is non alkaline.

Code

Thickness
(mm)

Width
(mm)

Density
(kg/m3)

Temp

(℃)

WFN

3 – 40

50 – 3000

110 – 180

650

TEXGEL GF Aerogel Insulation Blanket
Aerogel insulation blanket is new generation fiberglass base material with thermal conductivity 0.021 W/(m·K) for energy saving and thermal insulation in petrochemical pipes industry.

Code

Thickness
(mm)

Width
(mm)

Density
(kg/m3)

Temp

(℃)

TEXGEL GF 3

3

1500

180

650

TEXGEL GF 6

6

1500

180

650

TEXGEL GF 10

10

1500

180

650

Ceramic Fiber Blanket Paper Board
It's RCF grade fiber blanket paper board, including the grades as STD, HP, HA, HAZ, HZ for different temperature resistance among 1260 - 1430degree C. Most popular insulation layer for refractory furance, oven, klin, removable insulation blankets, exhaust pipes, heat shields, thermal insulation.

Code

Thickness
(mm)

Width
(mm)

Density
(kg/m3)

Temp

(℃)

WCBS

6 - 50

610/1220

96/128/160

1260-1430

WCP

1 - 10

610/1220

200

1260-1430

WCBO

3 - 50

1000/1200

300/400

1260-1430

Bio Soluble Fiber Blanket Paper Board
It's AES grade fiber blanket, most popular insulation layer for removable insulation blankets, exhaust pipes, heat shields, thermal insulation.

Code

Thickness
(mm)

Width
(mm)

Density
(kg/m3)

Temp

(℃)

BSFB

6 - 50

610/1220

96/128/160

1260-1430

BSFP

1 - 10

610/1220

200

1260-1430

BSFO

3 - 50

1000/1200

300/400

1260-1430

Carbon Felt
Carbon felt is preoxidized PAN fiber needled mat, widely used in heat protection as welding blanket and heat shield barriers. Cut to size blanket with eyelets in four edges are available.

Code

Thickness
(mm)

Width
(mm)

Density
(kg/m3)

Temp

(℃)

WPXB

2 - 10

1000 - 2000

100 - 150

400-1000

Texturized Fiberglass Yarn
Mainly for producing fiberglass fabrics, tapes, ropes, sleeves. Available in dyeing colors, available with stainless wire reinforcement, Inconel wire reinforcement, brass wire reinforcement.

Code

Type

Tex Value
(tex)

Diameter
(micron)

Temp

(℃)

WFY1

K-Style Spiral

400/600/800/1000/

1200/2400/4800

9/11/13

550

WFY2

C-Style Plain

400/600/800/1000/

1200/2400/4800

9/11/13

550

HT Texturized Fiberglass Yarn
Mainly for producing HT fabrics, tapes, ropes, sleeves. Normally it's dyed in light green color or blue color to specify it from regular texturized fiberglass yarns.

Code

Type

Tex Value
(tex)

Diameter
(micron)

Temp

(℃)

WFY1H

K-Style Spiral

400/600/800/1000/1200/2400/4800

9/11/13

750

WFY2H

C-Style Plain

400/600/800/1000/1200/2400/4800

9/11/13

750

Texturized Basalt Fiber Yarn
Mainly for producing fabrics, tapes, ropes, sleeves.

Code

Type

Tex Value
(tex)

Diameter
(micron)

Temp

(℃)

WBY1

K-Style Spiral

400/600/800/1000/1200/2400/4800

9/11/13

680

WBY2

C-Style Plain

400/600/800/1000/1200/2400/4800

9/11/13

680

Texsil Silica Twisted Yarn
Mainly for braiding ropes, sleeves, and use as sewing threads with coatings.

Code

Tex Value
(Tex)

Diameter
(mm)

Twist
(TPM)

Strength

(N)

WSY340

340

0.45

180

>50

WSY475

475

0.60

180

>70

WSY570

570

0.80

180

>80

WSY630

630

0.85

180

>90

WSY760

760

1.00

180

>110

WSY1200

1200

1.50

120

>190

WSY1600

1600

1.70

120

>230

Ceramic Fiber Yarn
Ceramic fiber spun with carrier fiber by twisting with reinforcement fiberglass filament or steel wire to make yarns, mainly for producing fabrics, tapes, ropes, sleeves. The main content of ceramic fiber will resist temperature up to 1260degree C, the carrier fiber inside ceramic fiber yarn may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage. Super Ceramic fiber yarn to work at temperature up to 1430 degree C is available in our production.

Code

Type

Weight
(kg/roll)

Reinforcement

Temp

(℃)

WCY525

525 x 2

1.25/2.5

Glass/Steel

650/1050

WCY630

630 x 2

1.25/2.5

Glass/Steel

650/1050

WCY630

630 x 3

1.25/2.5

Glass/Steel

650/1050

WCY780

780 x 2

1.25/2.5

Glass/Steel

650/1050

WCY1000

1000 x 2

1.25/2.5

Glass/Steel

650/1050

Bio Soluble Fiber Yarn
Bio soluble fiber spun with carrier fiber by twisting to make yarns, mainly for producing fabrics, tapes, ropes, sleeves to replace ceramic fiber textiles. We color it in light green to seperate it from normal ceramic fiber yarn. The main content of bio soluble fiber will resist temperature up to 1260degree C, the carrier fiber inside bio soluble fiber yarn may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage.

Code

Type

Weight
(kg/roll)

Reinforcement

Temp

(℃)

WBS525

525 x 2

1.25/2.5

Glass/Steel

650/1050

WBS630

630 x 2

1.25/2.5

Glass/Steel

650/1050

WBS630

630 x 3

1.25/2.5

Glass/Steel

650/1050

WBS780

780 x 2

1.25/2.5

Glass/Steel

650/1050

WBS1000

1000 x 2

1.25/2.5

Glass/Steel

650/1050

Spun Silica Fiber Yarn
Chopped silica fiber spun with carrier fiber by twisting to make yarns, mainly for producing fabrics, tapes, ropes, sleeves to replace ceramic fiber textiles. The main content of silica fiber will resist temperature up to 1000degree C, the carrier fiber inside silica fiber yarn may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage. This type yarn is economical silica yarn to replay the filament silica fiber yarn or texturized silica fiber yarn.

Code

Type

Weight
(kg/roll)

Reinforcement

Temp

(℃)

WSY525

525 x 2

1.25/2.5

Glass/Steel

1000

WSY780

780 x 2

1.25/2.5

Glass/Steel

1000

WSY1000

1000 x 2

1.25/2.5

Glass/Steel

1000

Spun Alumina Fiber Yarn
Chopped alumina fiber spun with carrier fiber by twisting to make yarns, mainly for producing fabrics, tapes, ropes, sleeves to replace ceramic fiber textiles. The main content of silica fiber will resist temperature continuously at 1200degree C, instant temperature 1500degree C, moltend at 1850degree C. The carrier fiber inside aluminia fiber yarn may catch smoke, smell, flame when it contacts fire or high temperature heat in the first stage. This type yarn is economical alumina fiber yarn to replay the filament alumina fiber yarn for widely applications.

Code

Type

Weight
(kg/roll)

Reinforcement

Temp

(℃)

WAY525

525 x 2

1.25/2.5

Glass/Steel

1200

WAY780

780 x 2

1.25/2.5

Glass/Steel

1200

WAY1000

1000 x 2

1.25/2.5

Glass/Steel

1200
