Texturized fiberglass fabric / Heat shield / welding blanket

Description

Produced of bulk texturized fiberglass yarns, traps greater amounts of air and demonstrates better insulation properties and greater fullness

Properties:
► Good rot and mildew resistance and tensile strength
► An alternative to asbestos based textiles
► A high-performance very high temperature fabric, used in almost all industries for heat protection
► Used at 1000°F / 537°C continuous, If exposed to high temperature between 600°F (315°C) to 1000°F (537°C) for an extended period of time the fabric may become stiff and brittle.

Available with specialty coatings such as Acrylic, Aluminium foil, Dyeing, Heat treatment, Neoprene/Latex, Silicone rubber, PTFE(Teflon), Wire insert, etc.

Applications:
Heat shields, welding curtains, stress relieving, removable insulation covers, fire blankets, fire curtains, expansion joints and flue ducts .

Specification:

1000°F / 537°C: Texturized Fiberglass Fabric
Part number			WFF208	WFF210	WFF215	WFF220	WFF225	WFF230
Weave			Plain	Plain	Plain	Plain	Plain	Plain
Yarn (tex)		Warp	480	480	1000	1720	2000	3000
Yarn (tex)		Weft	480	860	1000	1000	2000	3000
Thread count (ends per cm)		Warp	8.0±1.0	8.0±1.0	6.4±1.0	5.6±1.0	5.2±0.5	4.8±0.5
Thread count (ends per cm)		Weft	4.8±0.2	4.4±0.5	3.2±0.5	2.5±0.5	2.3±0.2	1.7±0.2
Tensile strength	Warp (N/50mm)		1600	1800	4300	4300	5000	5900
Tensile strength	Weft (N/200mm)		1000	1100	2300	2300	2300	2400
Weight (g/ m2)			650±50	800±60	1000±70	1300±85	1600±100	1800±110
Width (mm)			1000mm-2000mm
Thickness (mm)			0.8±0.08	1.0±0.10	1.5±0.15	2.0±0.2	2.5±0.25	3.0±0.30
Roll length (m)			50±1	50±1	50±1	30±1	30±1	30±1

Fiberglass products are resistant to oils, solvents and most chemicals although contact with hydrofluoric acids, strong alkalis and live steam should be avoided.

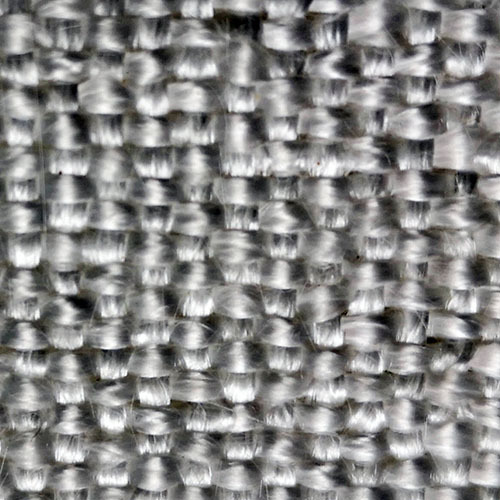

1.0mm thickness texturized fiberglass fabric
