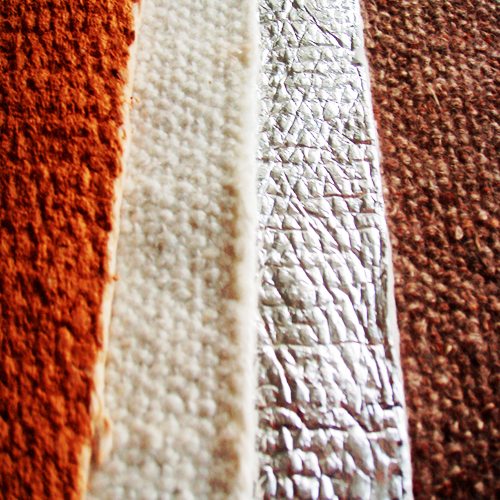

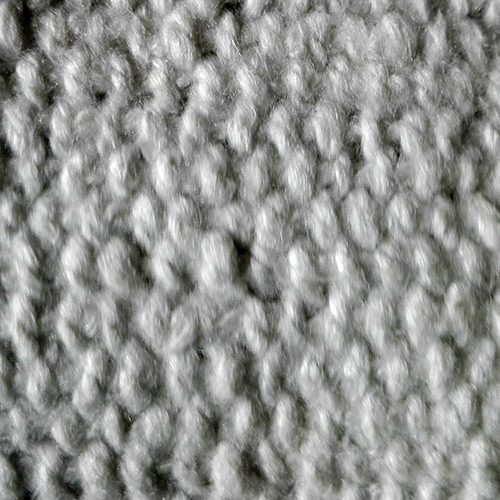

Ceramic fiber fabric, fiberglass reinforced

No.WCF1

Thickness: 1.5mm, 2mm, 3mm, 5mm Weight: 800gsm, 1000gsm, 1400gsm, 2300gsm Width: 1m, 1.2m, 1.5m Weave: plain, twill Reinforcement: fiberglass Temperature service up to 650deg C

GET A QUOTE

Description

Produced from an extremely pure alumina-silicate ceramic fiber
Available with fiberglass yarn reinforcement or Steel wire reinforcement
An alternative to asbestos based textiles
Provides low thermal conductivity and good dielectric strength and features excellent corrosion resistance
Used at 2300°F / 1260°C continuously, molts above 3000°F / 1650℃

It will not burn, rot, mildew or deteriorate and resist most acids. It has low coefficient of thermal expansion, used in applications including welding blankets, stress relieving, removable insulation covers, fire blankets, fire curtains, expansion joints and flue ducts.

Specification

2300°F / 1260°C: Ceramic F iber Fabric
Part number	Roll size	Weight (kg/roll)	Reinforcement
WCF115	1.5mmX1mX30m	24kg	Glass
WCF215	1.5mmX1mX30m	26kg	Stainless steel wire
WCF120	2.0mmX1mX30m	30kg	Glass
WCF220	2.0mmX1mX30m	33kg	Stainless steel wire
WCF130	3.0mmX1mX30m	42kg	Glass
WCF230	3.0mmX1mX30m	45kg	Stainless steel wire
