Home > All Collections > Ceramic fiber products > Ceramic fiber tape > Ceramic fiber ladder tape, fiberglass reinforced

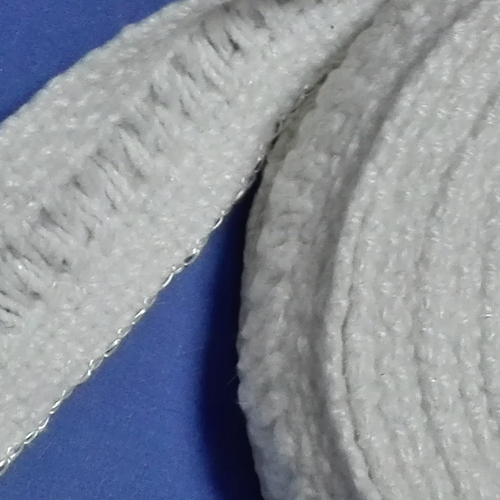

Ceramic fiber ladder tape, fiberglass reinforced

No.WCTL

Thickness: 2mm, 3mm, 5mm, 6mm Weight: 880gsm, 1240gsm, 2000gsm Width: 25mm - 200mm Weave: plain, twill Reinforcement: fiberglass Temperature service up to 650deg C

GET A QUOTE

Description

Ladder tape is made of wrap yarns missing in the center of tape, with just the weft yarns holding the remaining outside sections, give the tape looks like “ladder” and easy pass-thru over studs.
Produced from an extremely pure alumina-silicate ceramic fiber
An alternative to asbestos based textiles
Used at 2300°F / 1260°C continuously, molts above 3000°F / 1650℃
Available with a PSA (pressure sensitive adhesive) to facilitate easy installation
Common application of ladder tapes are used as gasket seal material on access doors for ovens, furnaces and kilns, where a gasket/seal is desired on both sides of the securing fasteners such as a bolt line. Ladder tape is also used on commercial kitchen exhaust duct flange joints as a sealing tape.

Specification

2300°F / 1260°C: Ceramic Fiber Ladder Tape
Part number	Thickness(mm)	Width(mm)	Length(m)	Weight(g/m2)	Reinforcement
WCT120L	2	20-200	30	880	Glass
WCT220L	2	20-200	30	880	Steel
WCT130L	3	20-200	30	1280	Glass
WCT230L	3	20-200	30	1280	Steel
WCT150L	5	20-200	30	2000	Glass
WCT250L	5	20-200	30	2000	Steel
WCT160L	6	20-200	30	2400	Glass
WCT260L	6	20-200	30	2400	Steel
