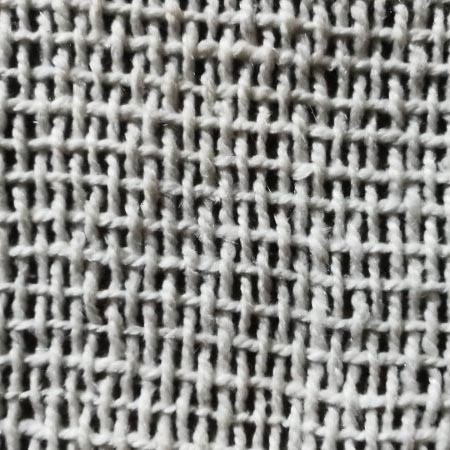

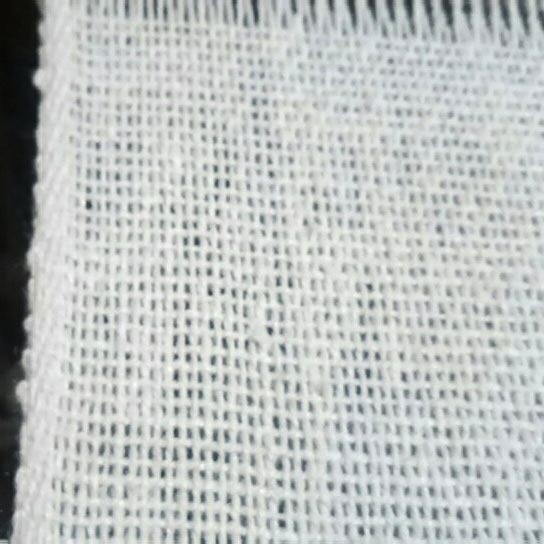

Ceramic fiber mesh fabric

No.WCFM

Thickness: 2mm Weight: 600gsm, 800gsm Width: 1m, 1.2m, 1.5m Weave: plain Reinforcement: fiberglass or ss wire Temperature service up to 1260deg C

GET A QUOTE

Description

Produced from an extremely pure alumina-silicate ceramic fiber
Available with fiberglass yarn reinforcement or Steel wire reinforcement
An alternative to asbestos based textiles
Provides low thermal conductivity and good dielectric strength and features excellent corrosion resistance
Used at 2300°F / 1260°C continuously, molts above 3000°F / 1650℃

It will not burn, rot, mildew or deteriorate and resist most acids. It has low coefficient of thermal expansion, used in applications including welding blankets, stress relieving, removable insulation covers, fire blankets, fire curtains, expansion joints and flue ducts.

Specification

2300°F / 1260°C: Ceramic Fiber Mesh Fabric
Part number	Roll size	Weight (gsm)	Reinforcement
WCFM1206	2.0mmX1mX30m	600gsm	Glass
WCFM2206	2.0mmX1mX30m	600gsm	Stainless steel wire
WCFM1208	2.0mmX1mX30m	800gsm	Glass
WCFM2208	2.0mmX1mX30m	800gsm	Stainless steel wire
