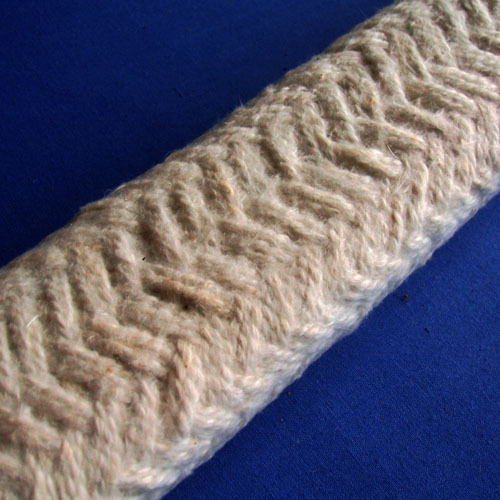

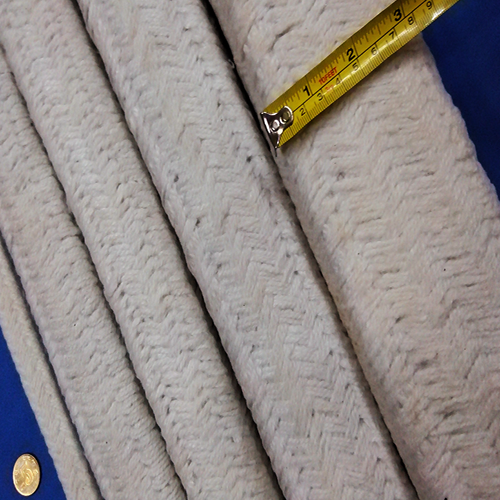

Ceramic fiber rectangular braided rope

No.WCR3

Diameter: 10X20mm - 40x60mm Reinforcement: fiberglass or ss wire Temperature service up to 1260deg C

GET A QUOTE

Description

Produced from an extremely pure alumina-silicate ceramic fiber

Available with fiberglass yarn reinforcement or Stainless steel wire reinforcement
An alternative to asbestos based rope
Highly flexible and minimal shrinkage
Provides low thermal conductivity and good dielectric strength and features excellent corrosion resistance
Used at 2300°F / 1260°C continuously, molts above 3000°F / 1650 °C

Common applications for this rope include asbestos packing replacement, radiant tube packing for heat-treat furnaces, expansion joint packing for furnaces, seals for stoves and ovens, bulb in tadpole gasket and door seal insulation

Chemical composition

Item		Specification	Item	Specification
Ceramic Fiber Chemical Content	Al2O3	≥45%	Thermal conductivity (w/m.k)	≤0.161
	Al2O3+SiO2 +ZrO2	≥96%	Filament Diameter (μm)	2-4
	Na2O+K2O	≤0.7%	Filament Length	20-50
	Fe2O3	≤1.2%	Thermal Shrinkage	≤4
	ZrO2	---	Working temperature	650℃-1050℃
