| Item | Specification | Item | Specification | |
| Ceramic Fiber Chemical Content | Al2O3 | ≥45% | Thermal conductivity (w/m.k) | ≤0.161 |
| Al2O3+SiO2 +ZrO2 | ≥96% | Filament Diameter (μm) | 2-4 | |
| Na2O+K2O | ≤0.7% | Filament Length | 20-50 | |
| Fe2O3 | ≤1.2% | Thermal Shrinkage | ≤4 | |
| ZrO2 | --- | Working temperature | 650℃-1050℃ | |

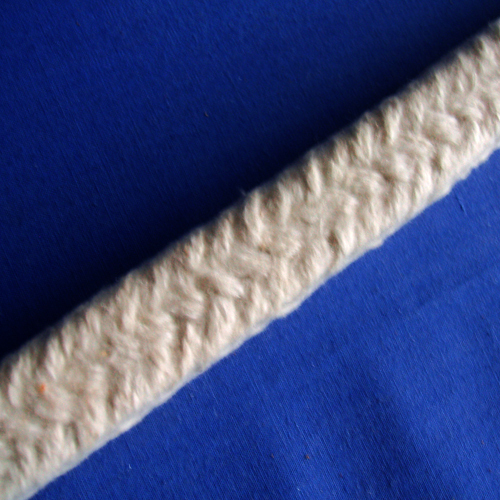

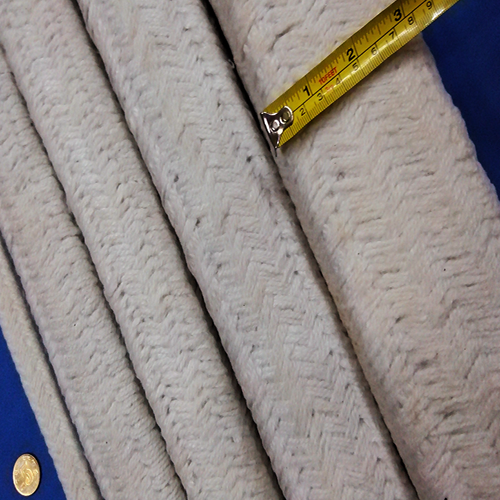

| 2300°F / 1260°C: Ceramic Fiber Square Braided Rope | |||||
| Diameter (mm) |
Roll length (m) |
Weight (g/m) |
Diameter (mm) |
Roll length (m) |
Weight (g/m) |
| 6X6 | 200 | 30 | 20X20 | 30 | 230 |
| 8X8 | 100 | 45 | 22X22 | 30 | 290 |
| 10X10 | 100 | 70 | 25X25 | 30 | 380 |
| 12X12 | 100 | 95 | 30X30 | 20 | 500 |
| 14X14 | 50 | 130 | 35X35 | 15 | 680 |
| 15X15 | 50 | 140 | 40X40 | 15 | 880 |
| 16X16 | 40 | 160 | 50X50 | 10 | 1200 |
| 18X18 | 40 | 190 | 100x100 | 10 | 5000 |
