Thickness: 0.1mm - 0.4mm Weight: 100gsm - 400gsm Width: 10mm - 150mm Length: 30m, 50m Weave: plain Electrical insulation grade fiberglass Temperature service up to 550deg C

GET A QUOTE

Description

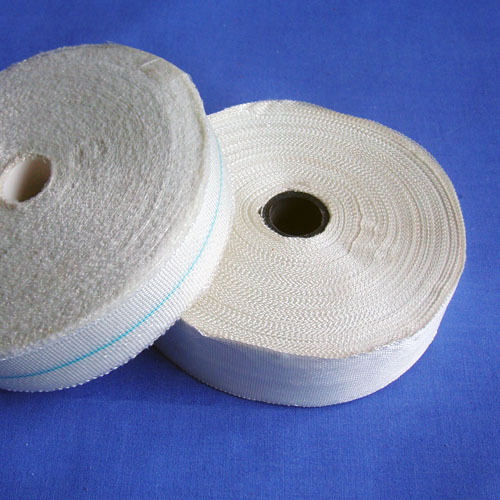

Woven of E-Glass filament yarns for electrical insulation usages.

Properties:
► White color, touches smooth, no broken yarns
► Good rot, mildew, deteriorate, acids resistance and tensile strength
► Low coefficient of thermal expansion
► Used to bind the coils of electrical machinery, electrical applications and transformers.
► Used at 1000°F / 537°C continuous

Specification

1000°F / 537°C: Electrical Insulation Fiberglass Tape
Part number	Thickness(mm)	Count/10mm		Broken Strength
Part number	Thickness(mm)	Wrap	Weft	N/20mm
WFT310	0.10	21.0±1.0	12.0±1.0	≥700
WFT313	0.13	23.0±1.0	12.0±1.0	≥800
WFT315	0.15	23.0±1.0	10.0±1.0	≥800
WFT318	0.18	23.0±1.0	10.0±1.0	≥1400
WFT320	0.20	23.0±1.0	12.0±1.0	≥1400
WFT325	0.25	23.0±1.0	10.0±1.0	≥1600
WFT330	0.30	21.0±1.0	8.0±1.0	≥1900
WFT332	0.32	21.0±1.0	10.0±1.0	≥2000

Width: 13mm, 15mm, 20mm, 25mm, 38mm, 50mm, 75mm, 100mm.
Length: 50m.
