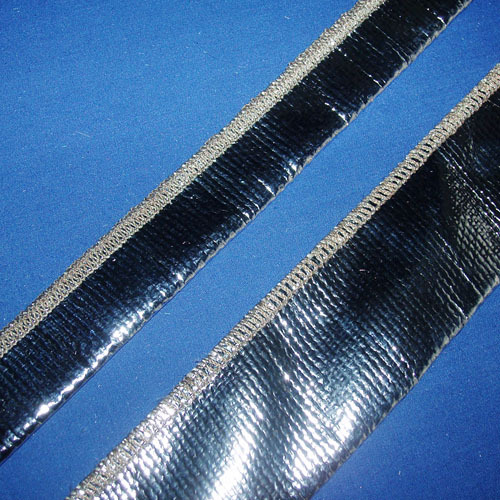

Reflective heat shield fiberglass sleeve edge sewn

No.WFSAS
Diameter: 15mm - 300mm Wall thickness: 0.4mm - 3mm Aluminized fiberglass fabric slitted Edge sewn style Reflective heat shield above 95% heat Temperature service up to 550deg C
  • Reflective heat shield fiberglass sleeve edge sewn

Description

Constructed from a high temperature base filament/texturized fiberglass fabric which is then coated with highly reflective polished aluminum. The aluminum foil coating melts at 1220°F / 660°C, however it does take some time for the aluminum foil to absorb enough heat to melt, thereby it can withstand short exposure to the higher temperatures. The basic fiberglass fabric is 1000°F/537°C, while adhesive will burn-off or vaporize at temperatures above 300°F/148°C.

The sleeve is fabricated from a roll fabric, and is sewn with a double lock-stitch seam utilizing hightemperature Kevlar thread. The resulting sleeve has a teardrop or tadpole profile when viewed on-end;the width of the sewn tail is typically 6mm.
