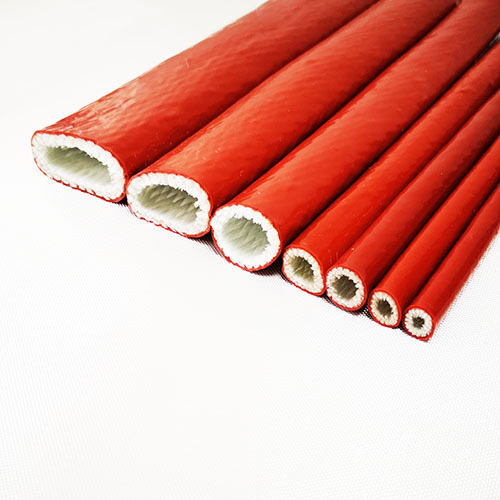

Silicone coated fiberglass firesleeve

No.WFS2R

Diameter: 6mm - 180mm Thickness: 2mm - 5mm Length: 15m, 20m, 30m, 40m, 50m Material: Silicone + fiberglass Color: red, black, yellow, grey, white, green, brown Certificate: DIN / SGS / UL / TUV / CE / etc

Description

The Aerospace Grade Firesleeve is fabricated from a bulk braided fiberglass yarn substrate with thick liquid silicone rubber coating.Coating process of silicone rubber on fiberglass sleeve makes this firesleeve flexible, expandable for connectors covering.

Properties:
► Firesleeve is made from braid high bulk glass fiber sleeve and coated flexibility Silicone Rubber can withstand repeated exposures to molten steel, molten aluminum and molten glass up to 3000°F (1650°C).
► The aerospace grade coating of our proprietary iron oxide red silicone rubber compound sheds molten metal splash immediately, so very little heat transfer occurs.
► When exposed to flames, the silicone rubber transforms into a crust, creating a protective SiO2 refractory layer.
► Excellent modulus of elasticity makes it an ideal choice for bundling hoses, tubes and cables in a variety of hostile environments.

Applications:
The typical applications include protecting hoses and cables in steel mills, aluminum smelting plants, offshore drilling rigs, foundries and glass manufacturing facilities.

The silicone coated fiberglass fire sleeve features an excellent modulus of elasticity, allowing it to easily stretch an expand over fittings and connectors. The outer cover offers excellent resistance to most industrial chemicals and hydraulic oils. Additional uses include the bundling of multiple hoses and cables together, while providing good abrasion resistance.

In applications where operators and maintenance personnel are working in the vicinity of steam lines or hot oil lines, there is always the danger of employees incurring serious burns from the branding effect of hot braided hoses. The silicone rubber coated sleeve provides effective burn protection from steam lines while insulating against costly energy losses. Applications include rubber vulcanization operations, platen presses, infection molding plants—anywhere hot steam or oil lines are used.

Specifications:

Code	I.D.(mm)	roll length (m)	Wall Thickness (mm)	Roll weight (kg)	Quantity (m/box)	Gross weight (kg/box)	Box size (cm)
WFS206RM	Φ6	20	1.6	1.10	200	12.00	353520
WFS208RM	Φ8	20	1.7	1.72	200	18.00	353520
WFS210RM	Φ10	20	1.9	2.33	200	24.00	404022
WFS213RM	Φ13	20	2.1	2.82	100	15.00	404015
WFS215RM	Φ15	20	2.2	3.53	100	19.00	404017
WFS218RM	Φ18	20	2.3	3.76	100	20.00	404020
WFS220RM	Φ20	20	2.5	5.20	100	27.00	404022
WFS222RM	Φ22	20	2.6	5.74	80	24.00	434318
WFS225RM	Φ25	20	2.7	6.50	60	20.00	434318
WFS228RM	Φ28	20	2.9	7.65	40	16.00	434312
WFS230RM	Φ30	20	3.0	8.20	40	17.00	434312
WFS232RM	Φ32	20	3.1	9.26	40	20.00	464614
WFS235RM	Φ35	20	3.2	9.93	40	21.00	464614
WFS238RM	Φ38	20	3.4	10.90	40	23.00	464616
WFS240RM	Φ40	20	3.5	11.46	40	24.00	464616
WFS245RM	Φ45	20	3.6	13.64	40	28.00	464618
WFS250RM	Φ50	20	3.7	15.81	20	17.00	464610
WFS255RM	Φ55	20	3.8	16.74	20	18.00	505010
WFS260RM	Φ60	20	3.9	18.92	20	20.00	505012
WFS265RM	Φ65	20	4.0	20.32	20	21.00	505012
WFS270RM	Φ70	20	4.1	23.87	20	25.00	505014
WFS275RM	Φ75	20	4.2	26.85	20	28.00	505014
WFS280RM	Φ80	20	4.3	29.10	20	30.00	505016
WFS285RM	Φ85	15	4.4	24.23	15	25.00	505016
WFS290RM	Φ90	15	4.5	26.40	15	28.00	505018
WFS295RM	Φ95	15	4.6	27.10	15	29.00	505018
WFS2100RM	Φ100	15	4.7	28.85	15	30.00	505018
WFS2110RM	Φ110	10	4.8	21.25	10	22.00	404020
WFS2120RM	Φ120	10	4.9	22.65	10	24.00	404022
WFS2130RM	Φ130	10	5.0	24.10	10	25.00	404022
WFS2140RM	Φ140	10	5.1	25.60	10	27.00	404025
WFS2150RM	Φ150	10	5.2	27.10	10	28.00	404025
